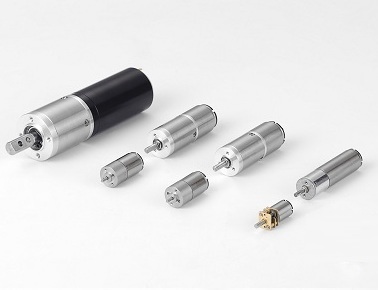

Coreless DC-Micromotors and Flat DC-Micromotors

Ø3 - Ø46mm dia. Coreless Motor

The highest power
Smallest possible size/weight
Best cost-performance

Coreless Brushless DC Motors

are synchronous, high-powered motors powered by drivers. They are quiet, lightweight, and handle torque at various speeds and positions, high rotating speeds and maximum operating life spans, making them ideal for continuously running and high-power applications.

Coreless DC Motors with precious metal commutation

Coreless brushed dc motors runs up to about 12900rpm, which have rotor windings wound in a honeycomb form to create a self-supporting cylinder. This eliminates the mass and inertia of a rotating rotor, making rapid acceleration and deceleration possible.

Coreless DC Motors with graphite commutation

Uniqualis Coreless DC Motors are fabricated with high-quality materials in a compact, lightweight design for great efficiency and power density.
When coupled with a gearbox, it can deliver high torque, and the encoder can be used for precise positioning applications.

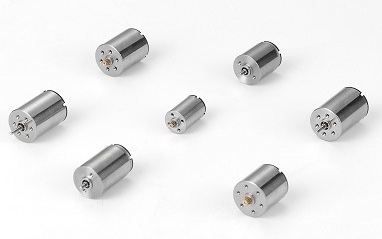

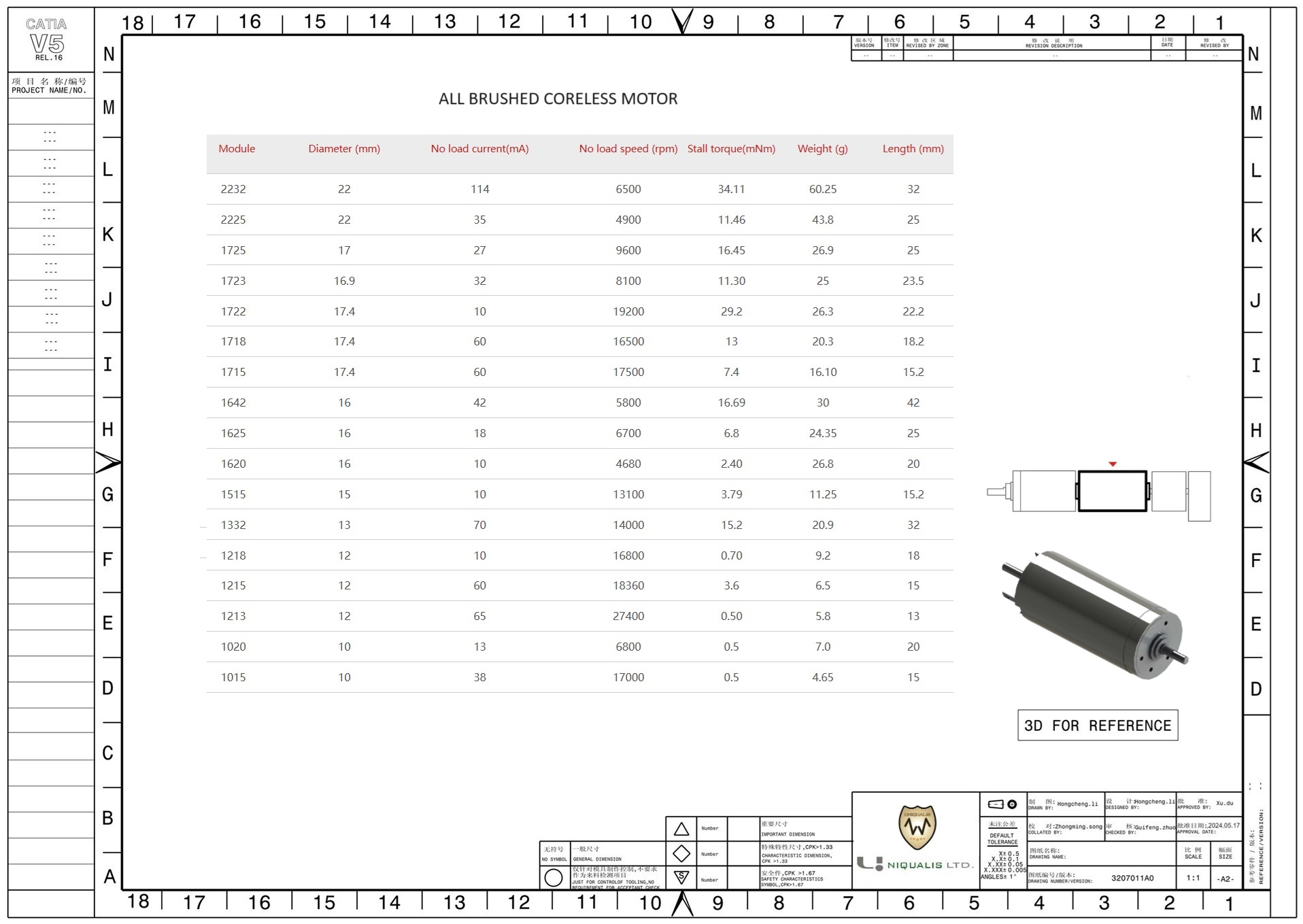

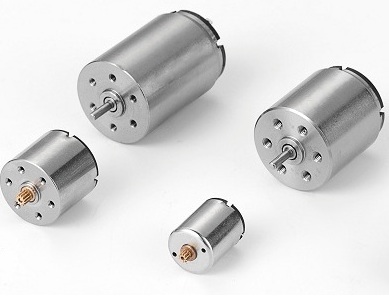

Coreless Motors - including Carbon and Metal brush

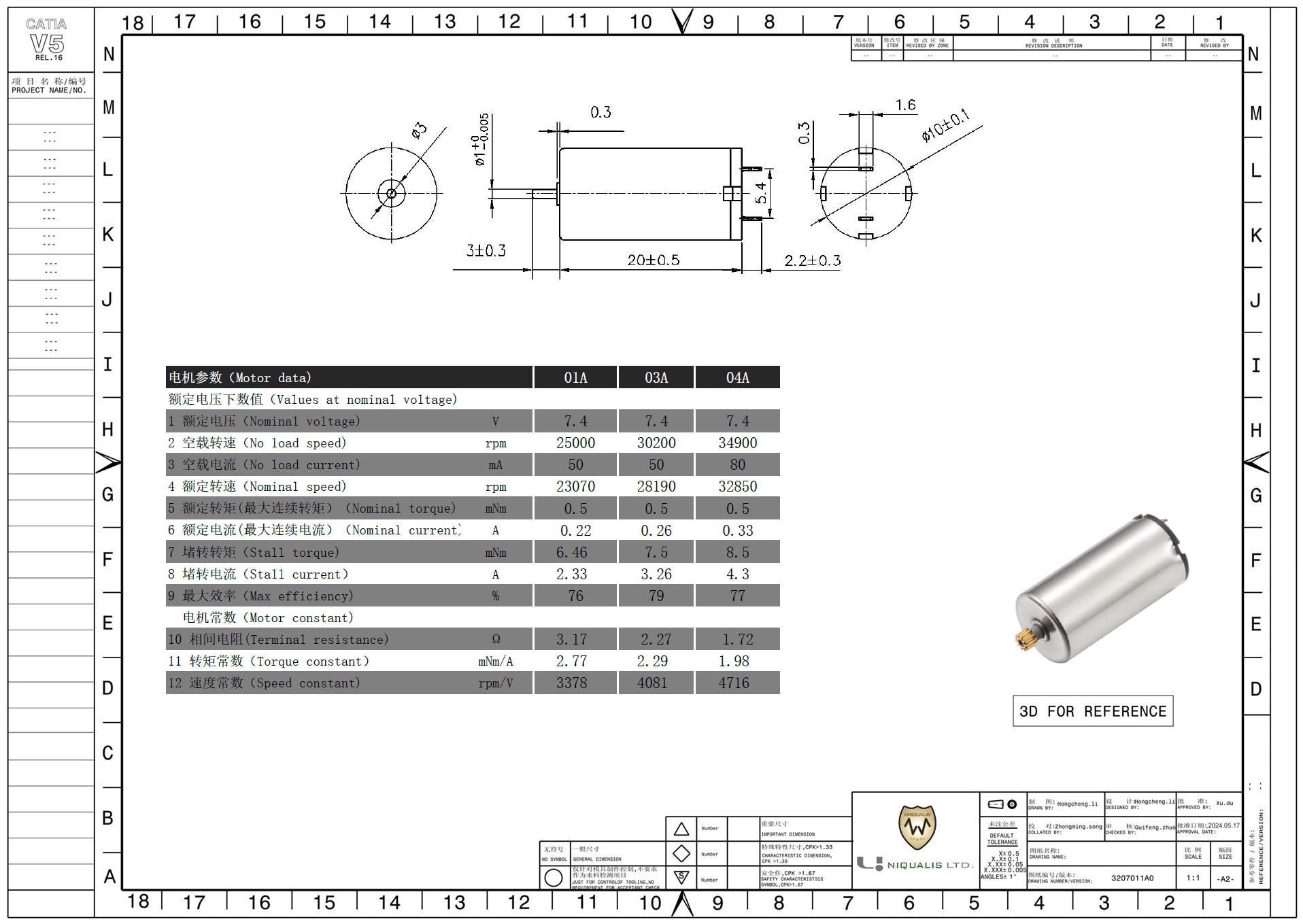

Coreless brush motor 1015, 1020

Available: In Stock Now !
Description : Diameter 10mm
Length 15mm and 20mm
No load current 13mA
No load speed 6800rpm
Stall torque 0.5mNm
Weight 7g

Buy Now More Info

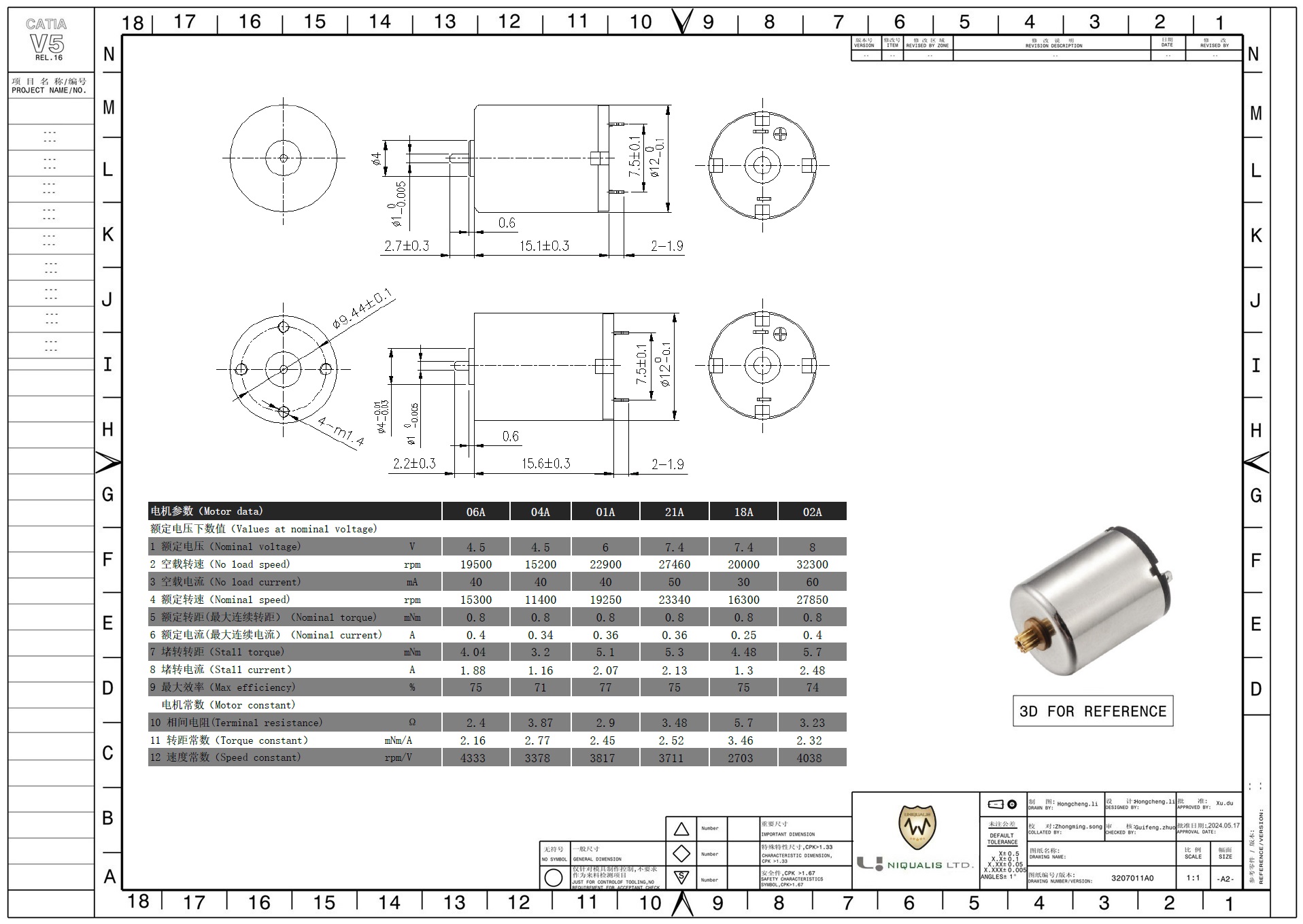

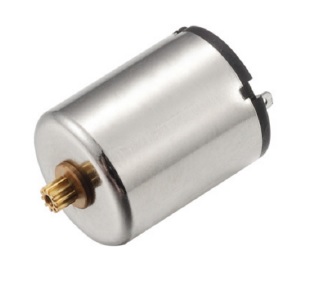

Coreless brush motor 1215

Available: In Stock Now !
Description :
Voltage 4.50 V
Terminal resistance 3.87 ohms
No-load speed 15200 rpm
No-load current 40 mA
Stall torque 4.7 mNm
Stall current 1.16 A
Nominal torque 0.8 mNm
Nominal speed 11400 rpm
Nominal current 40 mA
Max. efficiency 70 %

Buy Now More Info

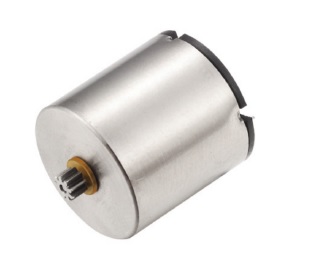

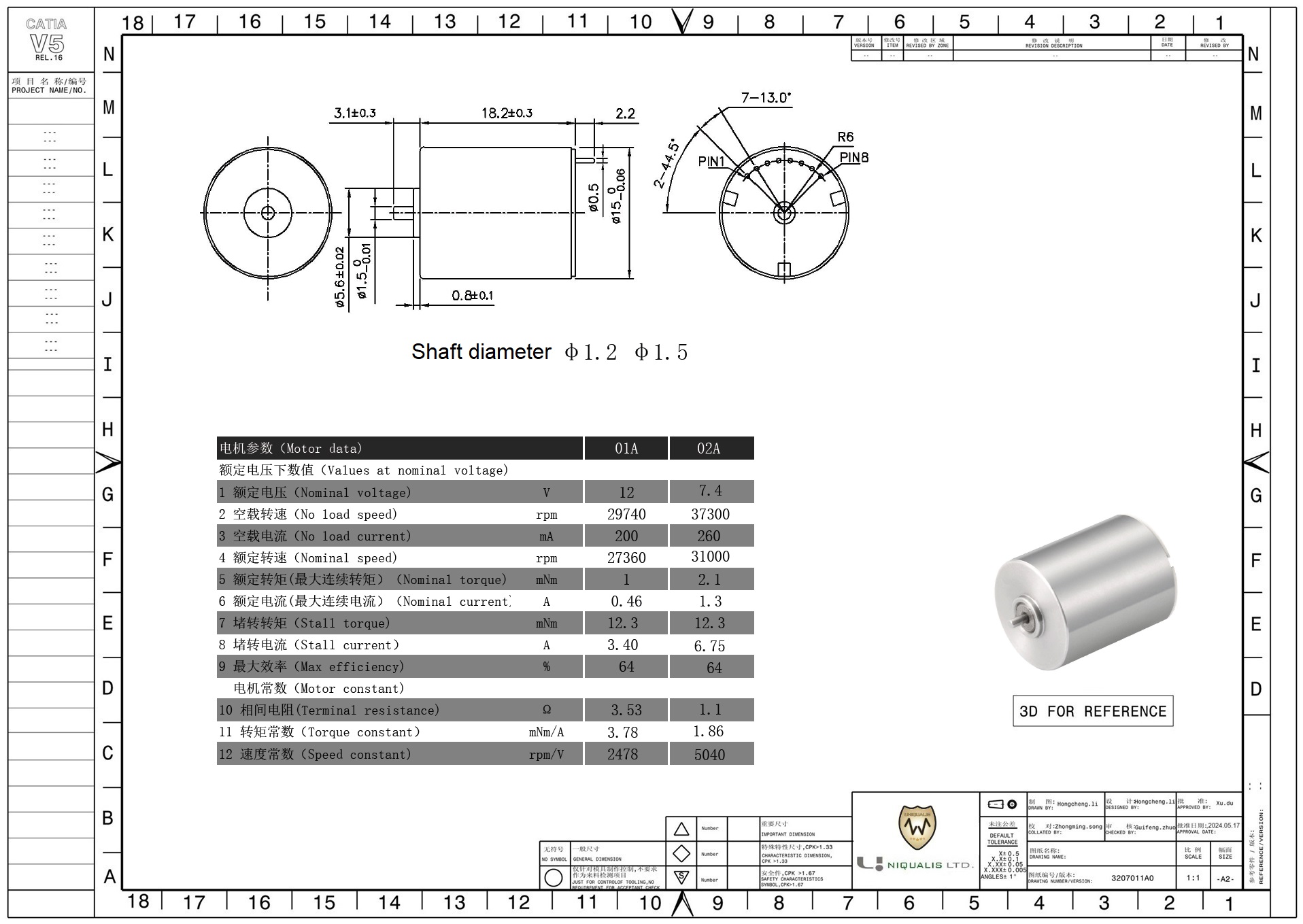

Coreless brush motor 1515,1518

Available: In Stock Now !
Description :
Voltage 12.0 V
Terminal resistance 3.53 ohms
No-load speed 29740 rpm
No-load current 200 mA
Stall torque 12.3 mNm
Stall current 3.4 A
Nominal torque 1 mNm
Nominal speed 27360 rpm
Nominal current 0.46 mA
Max. efficiency 70 %

Buy Now More Info

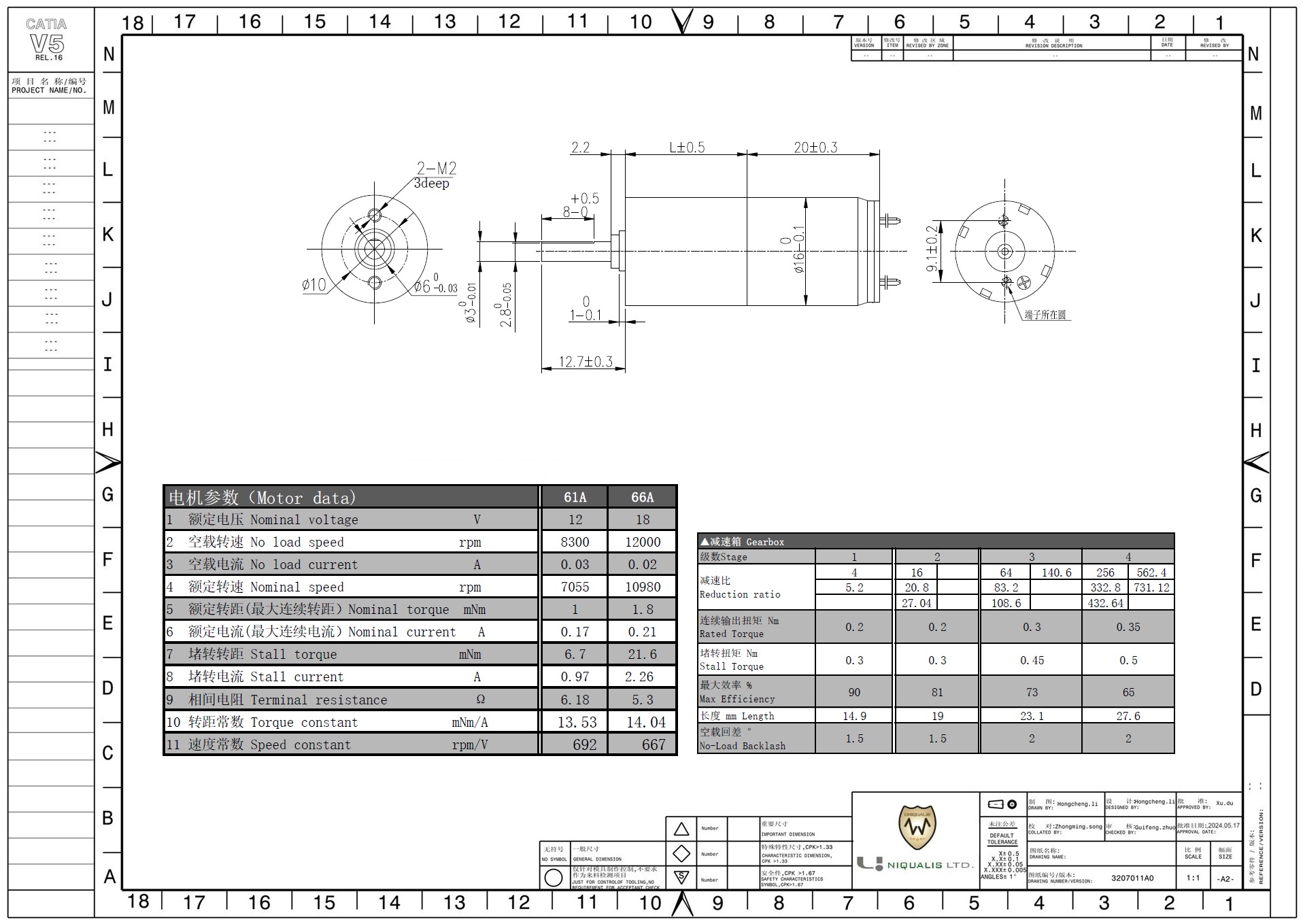

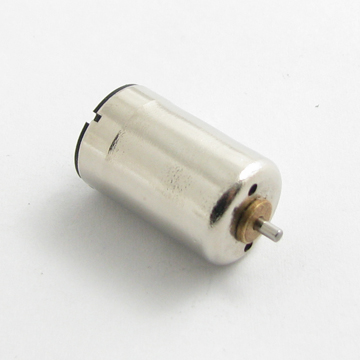

Coreless brush motor 1620

Available: In Stock Now !
Description :
Voltage 12.0 V
Terminal resistance 13.0 ohms
No-load speed 15000 rpm
No-load current 25 mA
Stall torque 6.7 mNm
Stall current 920 mA
Nominal torque 3.3 mNm
Nominal speed 7560 rpm
Nominal current 470 mA
Max. output power 2.6 W
Max. efficiency 70 %

Buy Now More Info

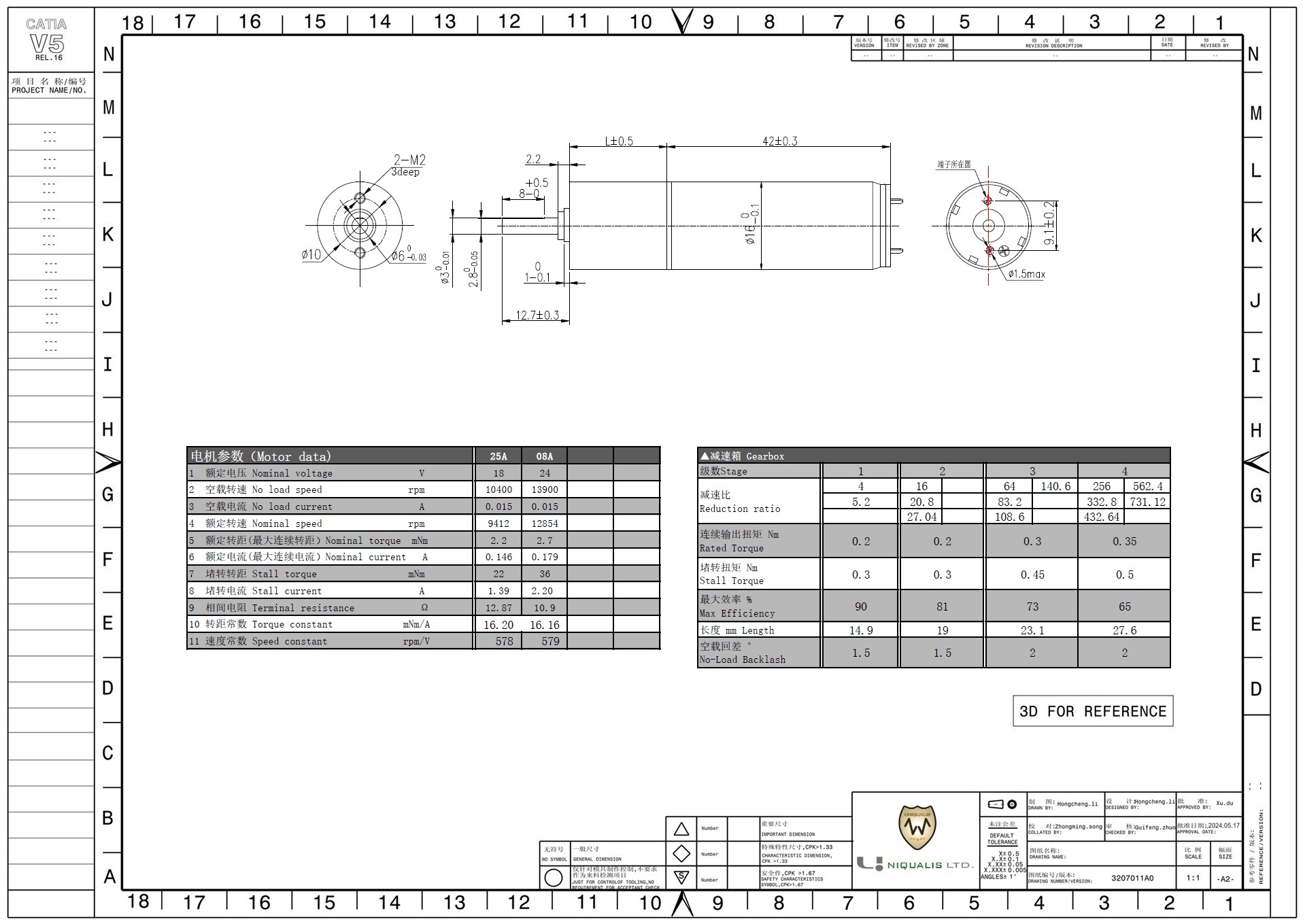

Coreless servo motor 1642

Available: In Stock Now !
Description :
Nominal Values
1. Nominal voltage 24 V
2. No load current 0.015 mA
3. No load speed 13000 rpm
4. Nominal speed 10910 rpm
5. Nominal torque / Max continuous torque 9.09mNm /28.42mNm
6 .Nominal current (continuous current) 0.525A
7. Stall torque 56.84 mNm
8 .Stall current 3.200 A
9.Rated efficiency 82.50%
10 .Max speed 14400rpm

Buy Now More Info

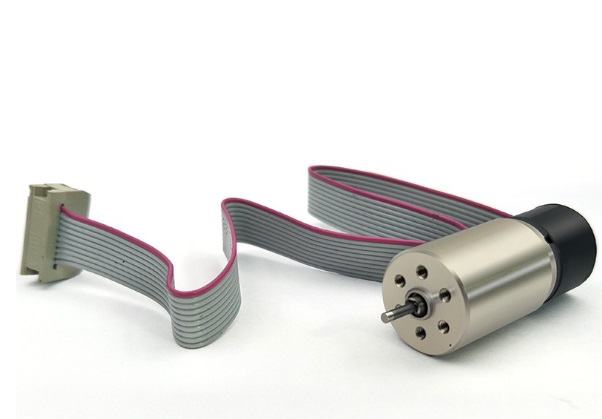

Coreless servo motor 1715,1722,1725

Buy Now More Info

Coreless servo motor 2225

Available: In Stock Now !
Description :
Voltage 12.0 V
Terminal resistance 4.3 ohms
No-load speed 10000 rpm
No-load current 20 mA
Stall torque 31.5 mNm
Stall current 2790 mA
Nominal torque 8.0 mNm
Nominal speed 7460 rpm
Nominal current 720 mA
Max. output power 8.3 W
Max. efficiency 84 %

Buy Now More Info

Coreless brushless motor 2447

Available: In Stock Now !
Description : Motor diameter range is 15mm-46mm
Voltage 12.0 V
Terminal resistance 4.3 ohms
No-load speed 10000 rpm
No-load current 20 mA
Stall torque 31.5 mNm
Stall current 2790 mA
Nominal torque 8.0 mNm
Nominal speed 7460 rpm
Nominal current 720 mA
Max. output power 8.3 W
Max. efficiency 84 %

Buy Now More Info

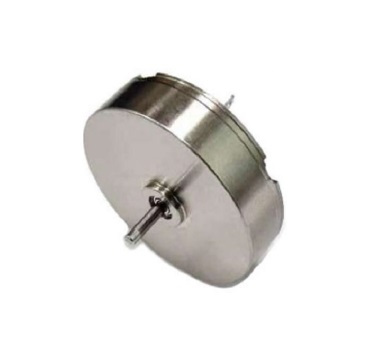

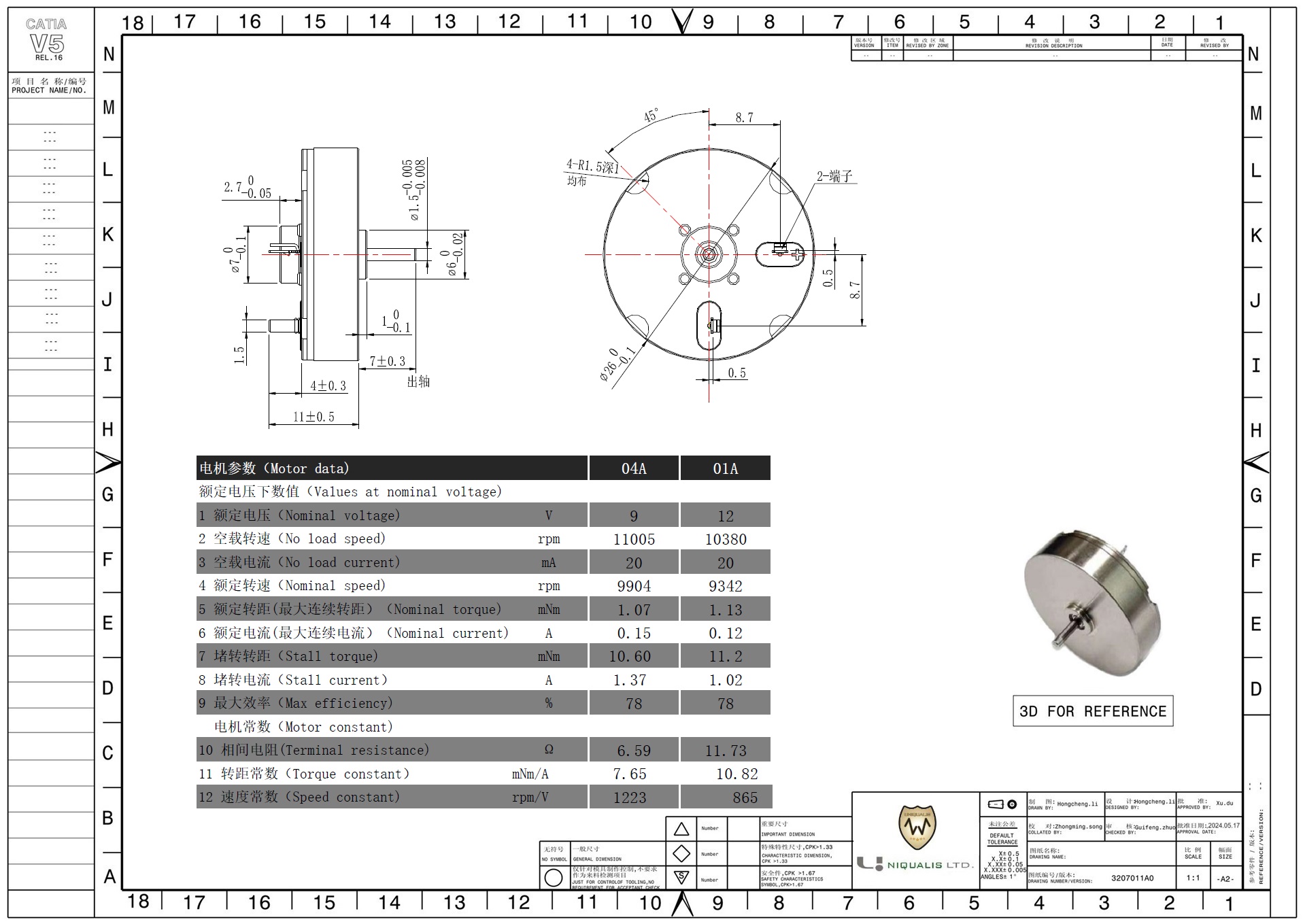

Coreless servo motor 2607

Available: In Stock Now !
Description :
Nominal voltage 12
No load speed rpm 10380
No load curent mA 20
Nominal speed rpm 9342
Nominal torque mNm 1.13
Nominal current A 0.12
Stall torque mNm 11.2
Stall cument A 1.02
Max eficiency 82%
Terminal resistance 11.73 ohms

Buy Now More Info

Coreless servo motor 2854

Available: In Stock Now !
Description :
Nominal voltage 18
No load speed rpm 13524
No load curent mA 480
Nominal speed rpm 12442
Nominal torque mNm 50
Nominal current A 4.44
Stall torque mNm 623
Stall cument A 50.00
Max eficiency 82%
Terminal resistance 0.36 ohms

Buy Now More Info

Coreless servo motor 3260

Buy Now More Info

Coreless servo motor 3670

Available: In Stock Now !
Description :
Nominal voltage V 12
No load speed rpm 6446
No load current mA 287
Nominal speed rpm 5640
Nominal torque) mNm 80
Nominal curent A 4.79
Stall torque mNm 633
Stall curent A 36.36
Max efficiency 84%

Buy Now More Info

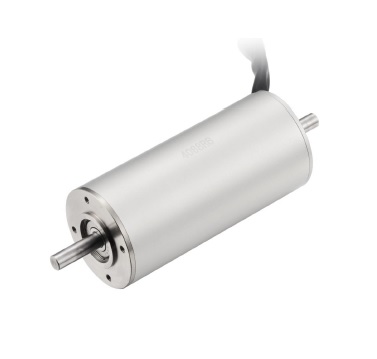

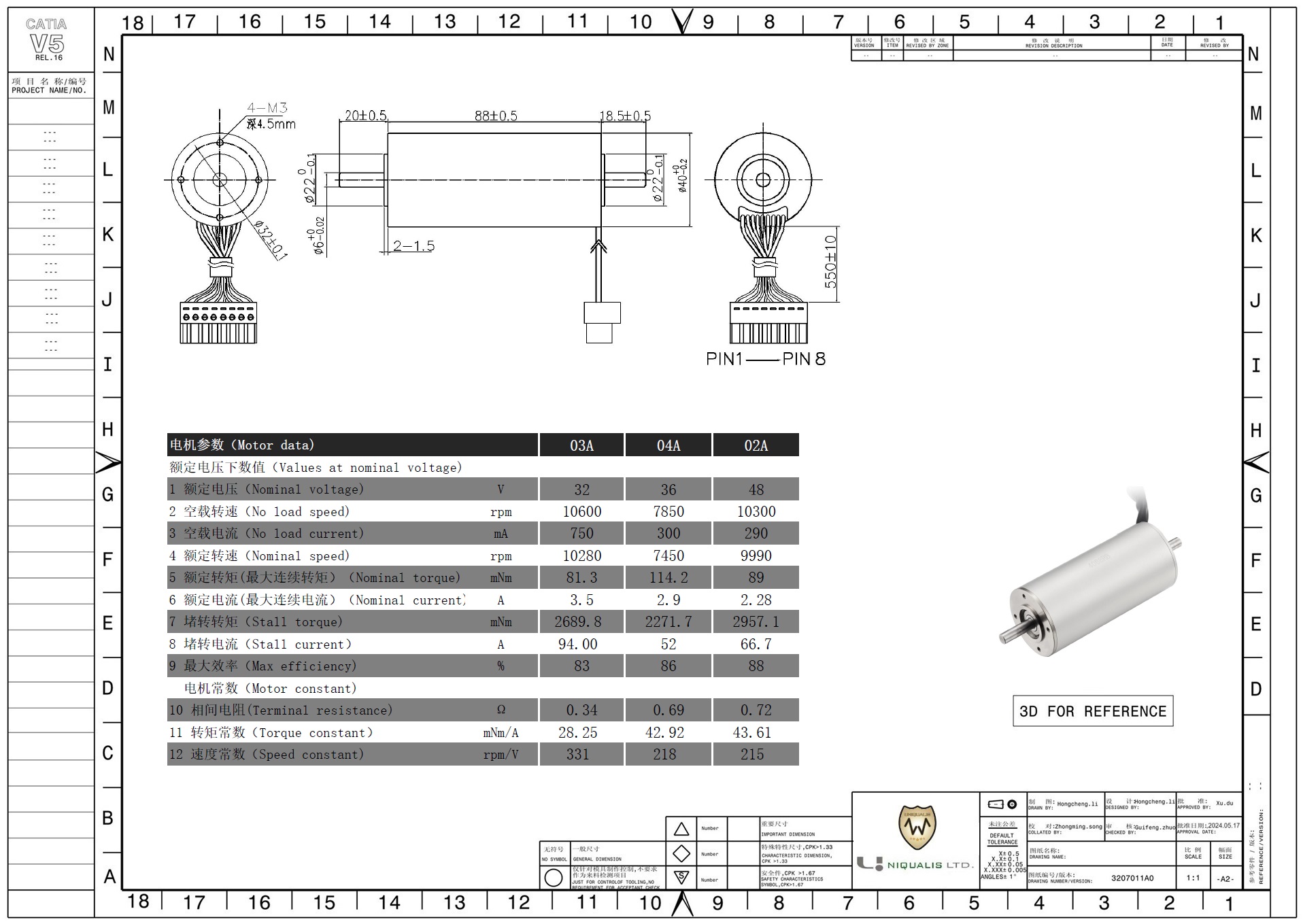

Coreless BLDC motor 4088

Available: In Stock Now !
Description :
Nominal voltage V 32
No load speed rpm 10600
No load current mA 750
Nominal speed rpm 10280
Nominal torque) mNm 81.3
Nominal curent A 3.5
Stall torque mNm 2689.0
Stall curent A 94.0
Max efficiency 84%

Buy Now More Info

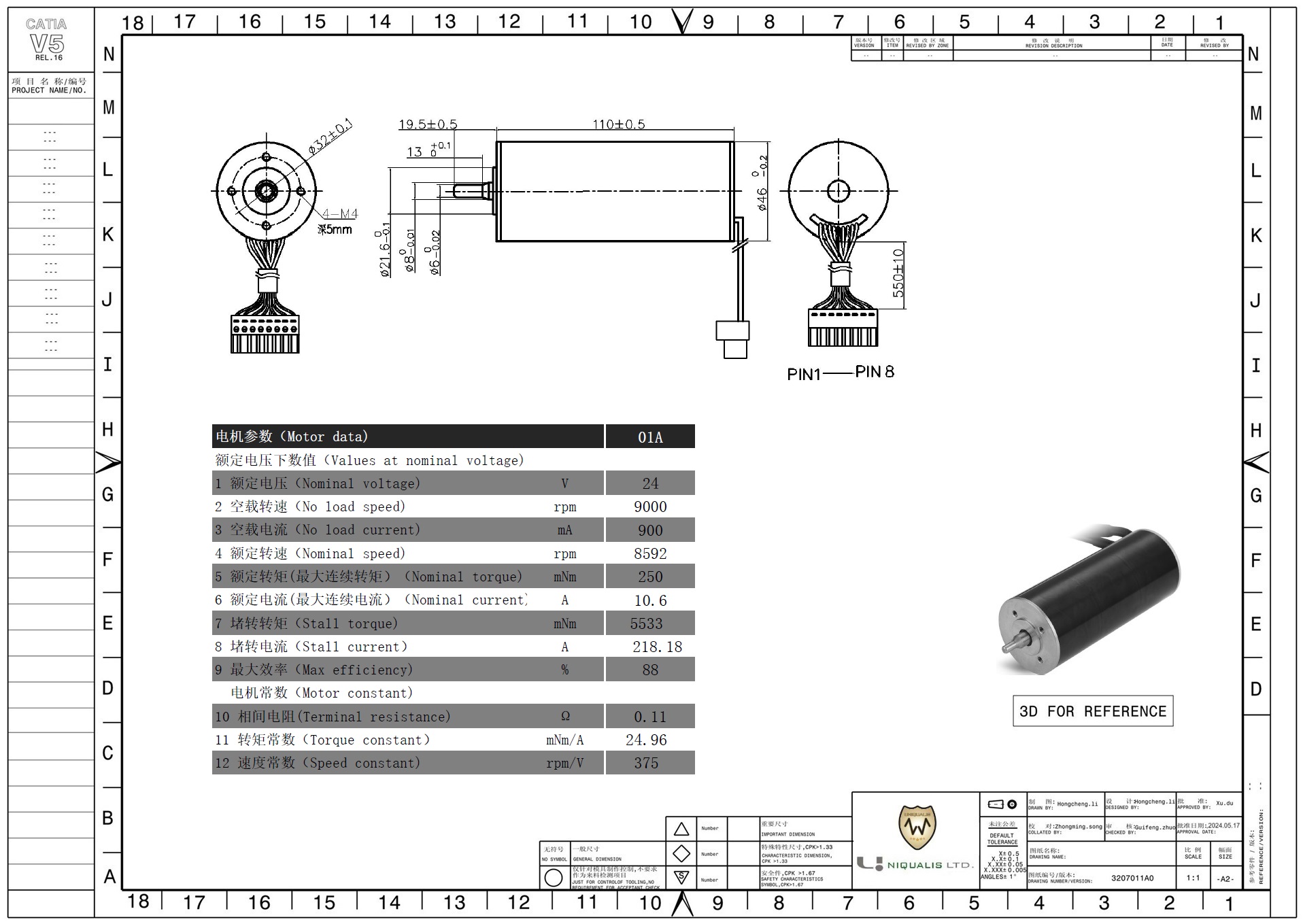

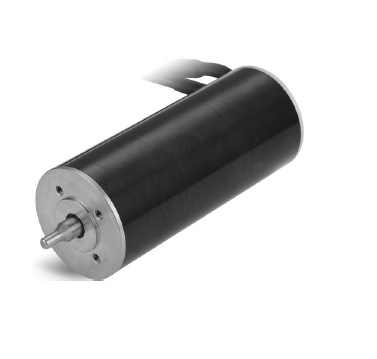

Coreless BLDC motor 46110

Available: In Stock Now !
Description :
Nominal voltage V 24
No load speed rpm 9000
No load current mA 900
Nominal speed rpm 8592
Nominal torque) mNm 250
Nominal curent A 10.6
Stall torque mNm 5533
Stall curent A 218.18
Max efficiency 84%

Buy Now More Info

Small coreless motor and encoder - optical & magnets

0408/0410 Coreless motor

Dia. 4mm*Length: 8mm

Buy Now More Info

0610 Coreless motor

Dia. 6mm*Length: 10mm

Buy Now More Info

0612 Coreless motor

Dia. 6mm*Length: 12mm

Buy Now More Info

0614 Coreless motor

Dia. 6mm*Length: 14mm

Buy Now More Info

0714 Coreless motor

Dia. 7mm*Length: 14mm

Buy Now More Info

0820 Coreless motor

Dia. 8mm*Length: 20mm

Buy Now More Info

22mm Optical encoder

Resolution: 200~8192 P/R

Buy Now More Info

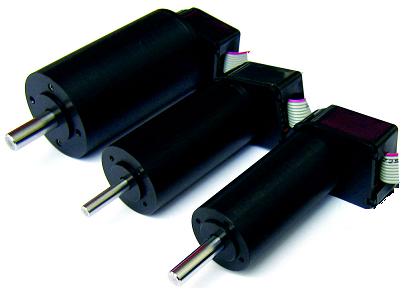

28mm Optical encoder

Resolution: 100~2500 P/R

Buy Now More Info

30mm Optical encoder

Resolution: 96-1250 P/R

Buy Now More Info

36mm Optical encoder

Resolution: 96-1250 P/R

Buy Now More Info

56mm Optical encoder

Resolution: 1000-2048 P/R

Buy Now More Info

10mm-42mm Magnet encoder

Resolution: 10-36 P/R

Buy Now More Info

WHY CHOOSE UNIQUALIS MOTOR

SINCE 2001

23+ years experience in Gear Motors, BLDC motors and electric axle manufacturing.10+ years experience in international trade and started office in Frankfurt am Main,Germany in 2017.

Flexible Manufacturing

Automatization motors production equipment. Our flexible manufacturing line can accommodate large and small orders for any kind of industries for innovation in motion.

Engineering Excellence

Due to the extensive experience in drive technology, our customers can count on good practical advice in the field of assembly up to complex R&D issues, whether or not combined with business solutions.

OEM&ODM

Adapt precision gear process to ensure low noise and low vibration for 98% OEM&ODM.

Quality Control System and Best Service

From idea, design, testing, technology support, manufacturing to sales, Uniqualis offers products and service in domestic and overseas marketing under IATF 16949:2016 system.

After-Sales Service in Germany

Our after-sales service is jointly managed by our factory in China and our office located near Frankfurt am Main, Germany. For particularly complex issues, our research department engineers will directly assist you to ensure a swift resolution.

Coreless Motor Range

Coreless DC Motors

A DC coreless motor does not contain a laminated iron core in the rotor, while a traditional brushed DC electric motor contains an iron-made inner core.

- Our Product Lines -

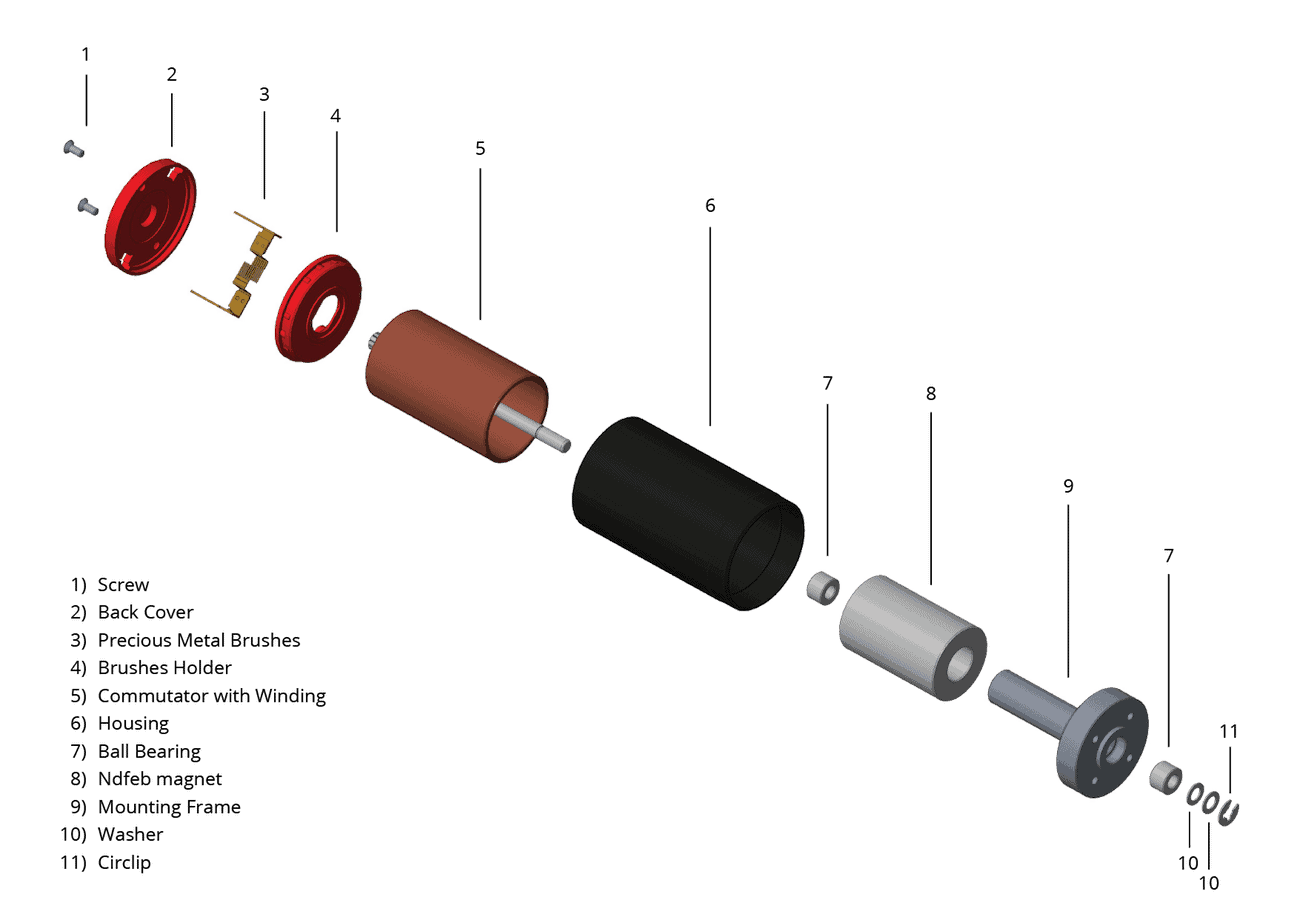

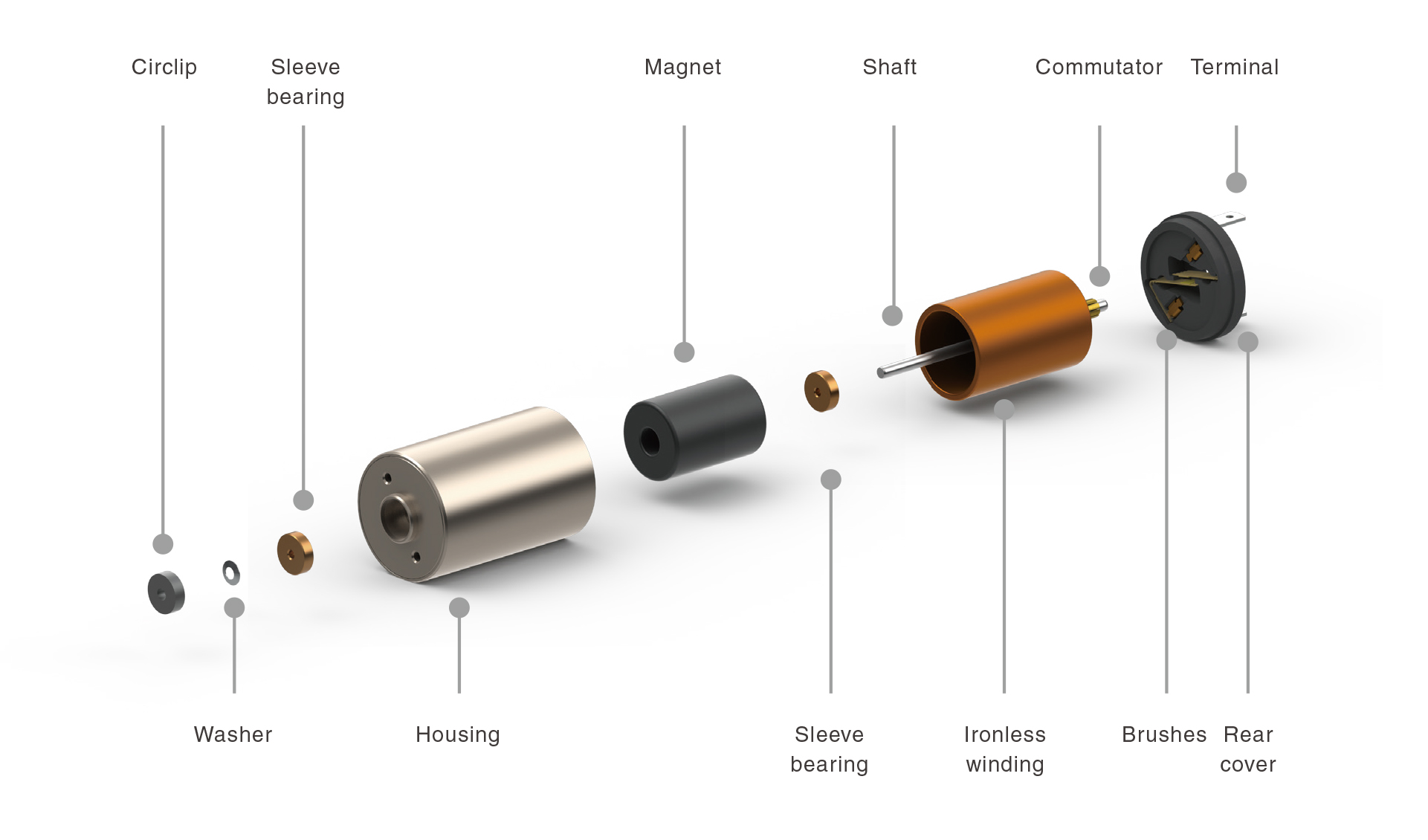

Coreless brushed motor

Brushed coreless motor does not have an iron core, and consists of a cup-shaped core as rotor and a permanent magnet inside the rotor as stator. Brushed coreless motor features the following: Coreless motor features the following:

Features

1. Cup-shaped rotor coil is very light weight and has a small moment of inertia, allowing the motor to start and stop quickly.

2. Because there is no cogging due to stator-rotor positioning, it features smooth rotation, low noise and low vibration.

3. Motor can be made in compact sizes because it is made only of rare earth magnet, coil and rotor. For the reasons mentioned above, our brushed coreless motor is used in many applications that require high precision, high speed response, as well as compactness and high efficiency.

Issues & Challenges in brushed Motor

1. The primary factors affecting the lifespan of brushed motors are abrasion due to rotational contact of the brush and commutator, and electric corrosion during polarity switching.

2. While precious metal contact material minimizes the electric corrosion, physical abrasion remains an issue.

3. Changing the brush material to carbon-based can prevent the mechanical wearing, but at the same time, this can increase electric spark noise.

In general, brushed motors are not suitable for power motors because they can't accept large flow of electric current. Uniqualis presents brushed coreless motors that address these issues equally.

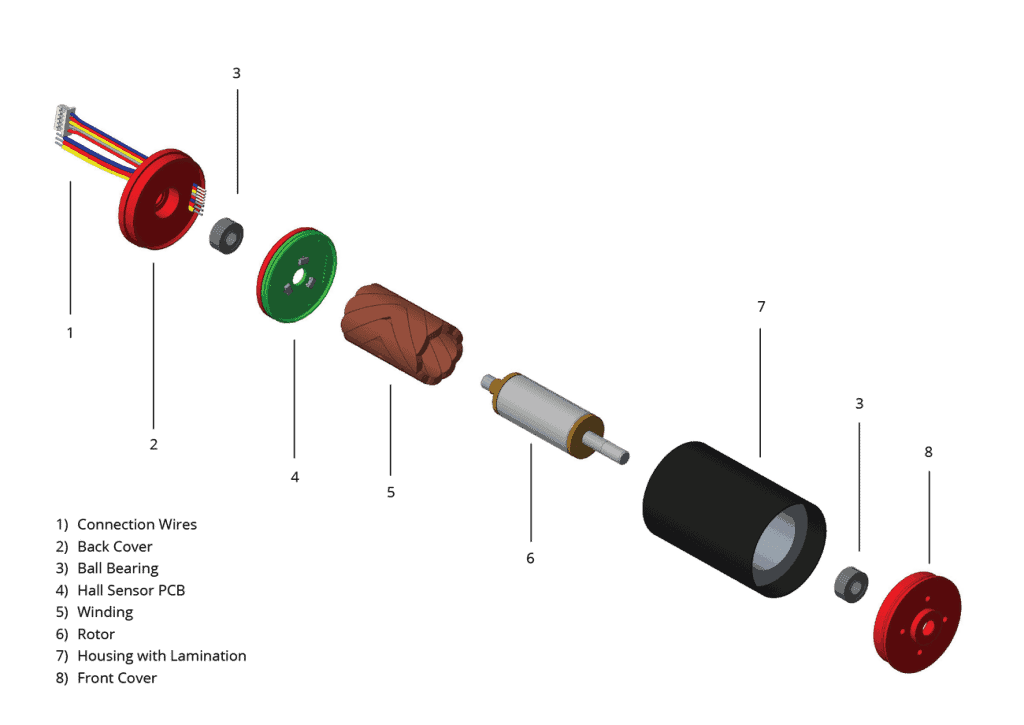

Coreless brushless motor

In our brushless motor, we removed the mechanical contacts such as brushes and commutators used in conventional brushed motors, and applied an electric signal to take their place. The brushless motor requires an electric circuit board because there is no commutator. This motor (circuit board) has two types, one with a magnetic sensor, and the other with no sensor. The one with the magnetic sensor detects its position via the sensor, and the other detects the rotor magnet position via back-EMF. Brushless motor's features are as follows:

Features

1. Stator coil is located outside in inner rotor type brushless motor. Therefore, it is good in heat dissipation. Because there are no contacts (brush/commutator), large current can be input to answer to high power needs.

2. No mechanical noise and no electric noise for switching current(no brush and no commutator)

3. Long life and high reliability (due to no-contact design)

In Uniqualis' brushless motor, stator is a slot-less core with cup-shaped coil, and rotor is the magnet inside. Therefore, magnetic force is even regardless of coil/magnet position, and motor rotation is free of cogging.

Issues & Challenges in Brushless Motor

1. As brushless motors have no mechanical contacts for polarity switching, they have high power and long lifespan. However, due to the rotating magnet core, the inertia is much larger than that of coreless brushed motor and the response time slower.

Uniqualis presents brushless motors that address these issues equally.

RC servo motor

RC servo motor pursued "high speed response" and "high output" with evolution of batteries.

1. In RC servo applications, the mechanical time constant (the time it takes the servo to reach top speed from zero) is one of the most important specifications. Hence coreless motor, with its basket coiled rotor and faster response time, has conventionally been chosen over iron cored motor.

2. RC servos require quick, repetitive left and right motion in a 60 degree angle, which means the motor is always running at the maximum current. This causes the coil to heat up and remain hot for the entire duration of use, limiting the lifespan.

As such, RC servo is considered one of the hardest applications for DC brushed motors.

Market solutions that use our motors

Consumer Electronics

Improve efficiency and battery life in products like Vacuum cleaners, Electric bicycles,Wearable devices, Scanners, Massagers, Toy robot ,Drones and Minimal vibration.

Motor solutions

Gear Motors

Vibration Motors - SMT,Coin, Cylinder

Outer Rotor BLDC

Coreless Motors

Mobility Solutions (EVs)

Enhancing EV performance and range, exemplified by electric drive axle and motor transaxle solutions for Off-road vehicles,Unmanned vehicles,Retrieval machines, Driverless transport systems and Intelligent logistics robots.

Motor solutions

Electric Drive Axle

Wheel Motors

Electric motors and control system

Home Robotics

Home automated robotic arm or The lawn mower robot in our garden, Motorized blinds, Curtains, Washing Machines, Dishwashers, Refrigerators, HVAC systems for tasks like agitating, rotating and controlling airflow and Smart locks.

Motor solutions

Gear Motors

Wheel Motors

Outer Rotor BLDC

Servo Coreless Motors with encoder

Industrial Automation

Industry 4.0, IoT, and AI require complex mechatronic systems. Uniqualis motor enhance productivity in Robotics, Conveyor systems, Pumps, Mixers and Lift actuator CCTV system or a Locking system.

Motor solutions
