250W - 15kW Wheel Motors, Min 6" wheel
Wheel motors, Hub motors
)
)
Wheel drive motors
Motor wheel drive
Wheel Drive gearbox unit have been created to offer an unprecedent flexibility in composition, performance, cost and applications.
All-in-one solution for a quick installation
Uniqualis Motor Wheels are widely used in Mobile robots (AGV/AMR), Service robots, Forklifts, Electric vehicles, Construction machine, Agricultural machine, Smart logistics system, New energy and other fields.

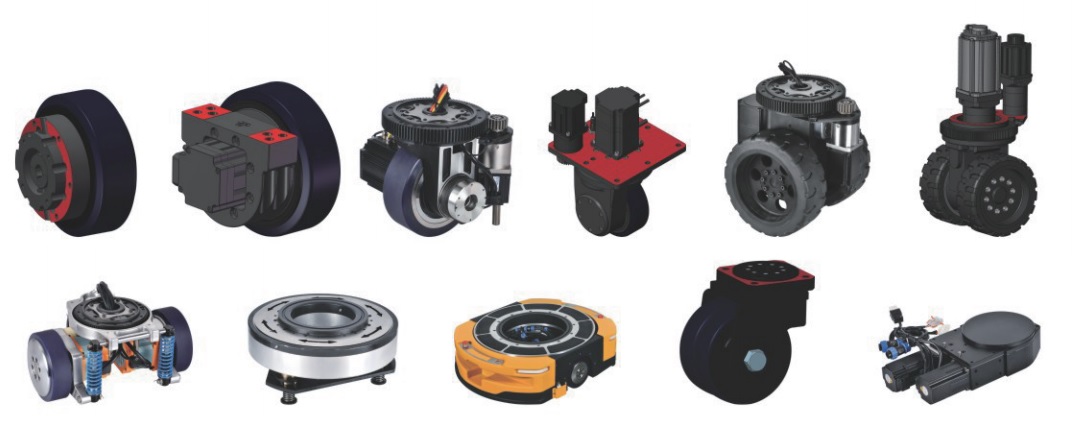

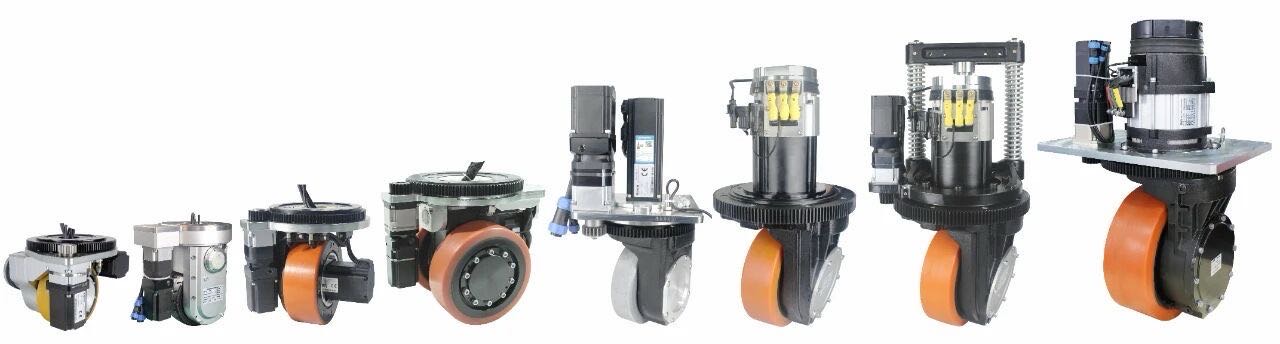

Drive wheel for various types of mobile robots
Uniqualis provides steering wheels for AGV/AMR, Horizontal drive wheel(Drive unit), Vertical drive wheel, differential drive wheel, integrated drive wheels and servo controller.

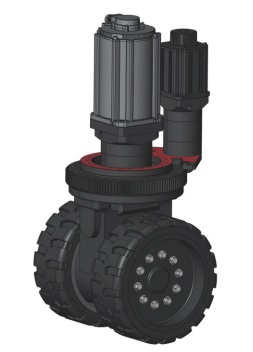

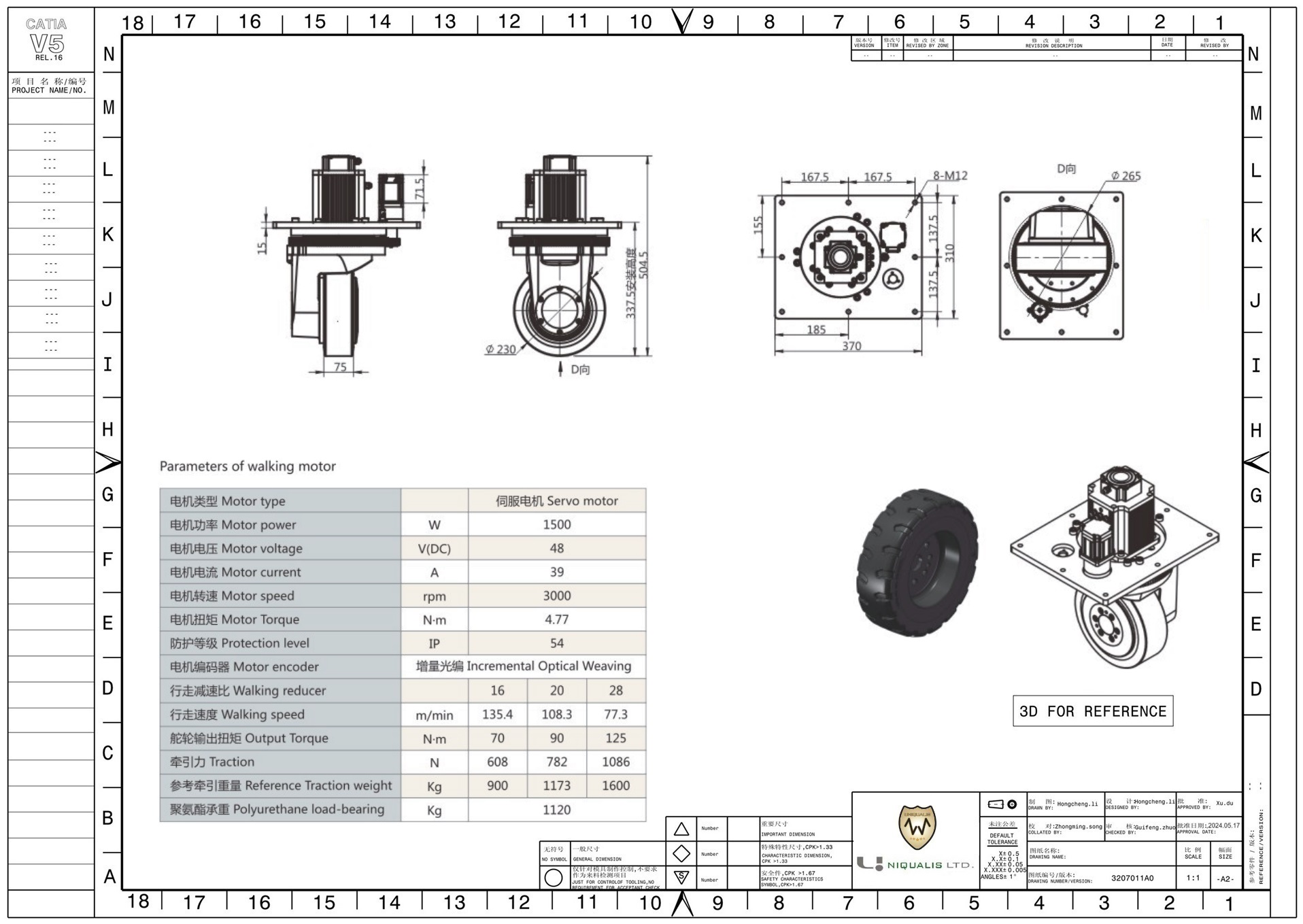

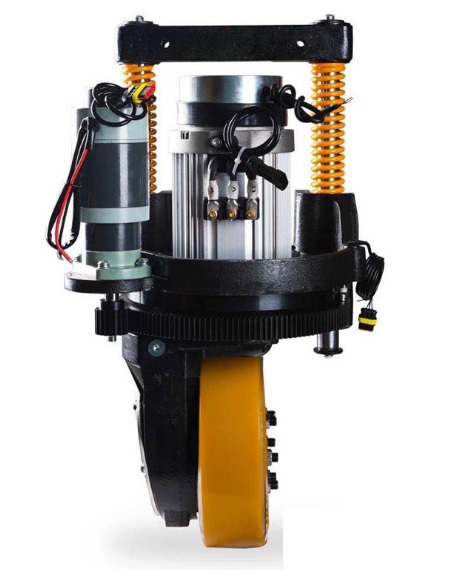

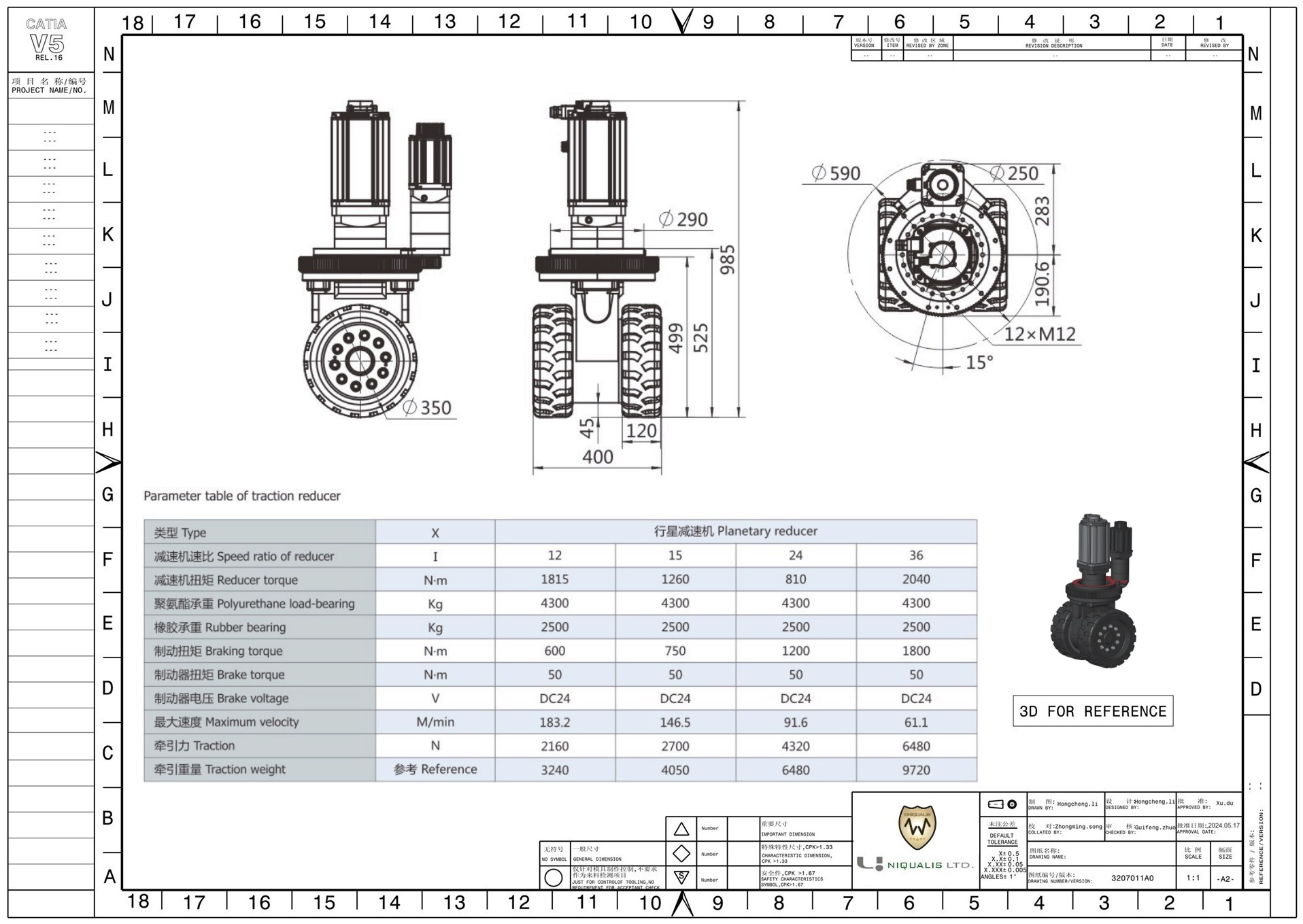

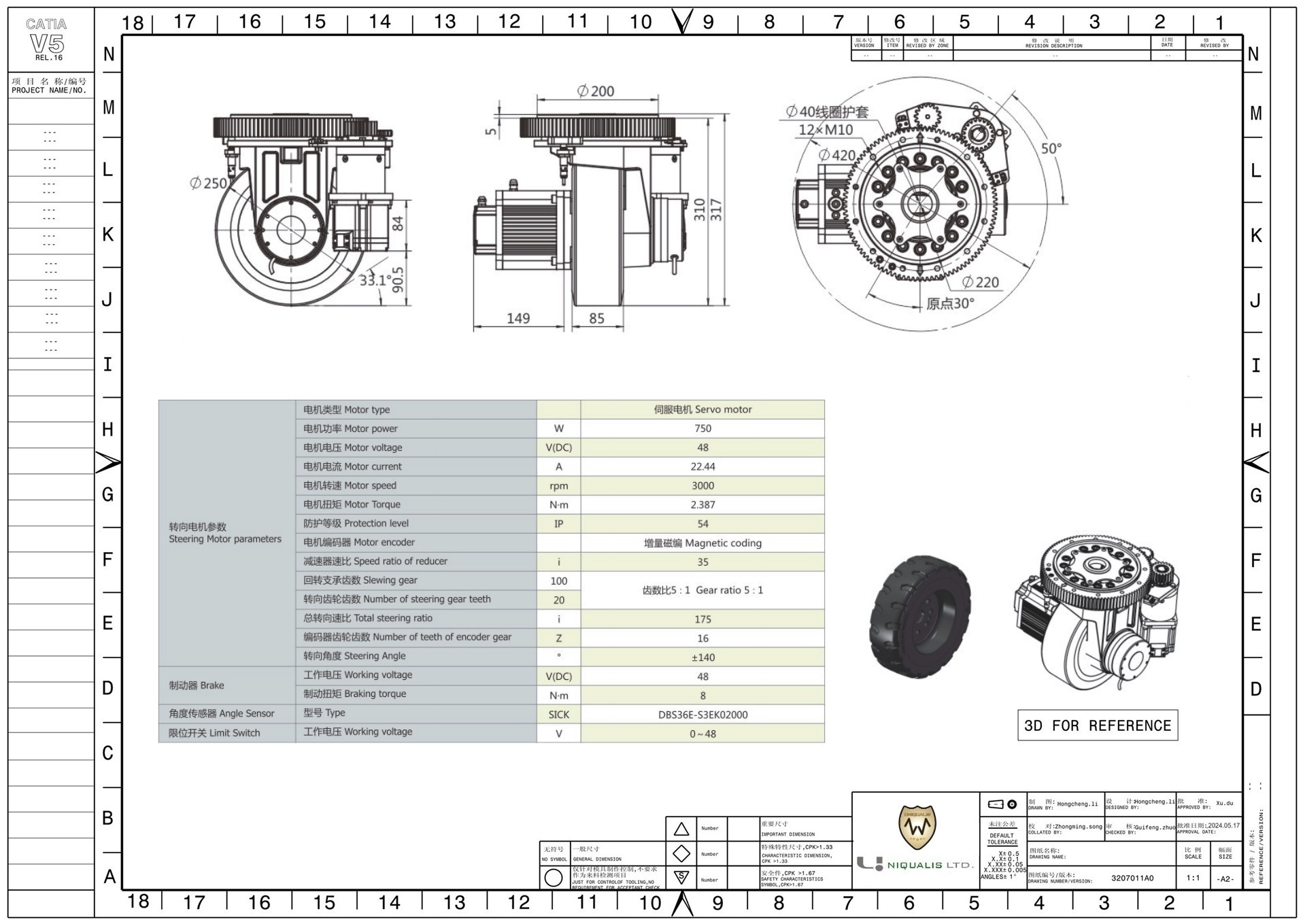

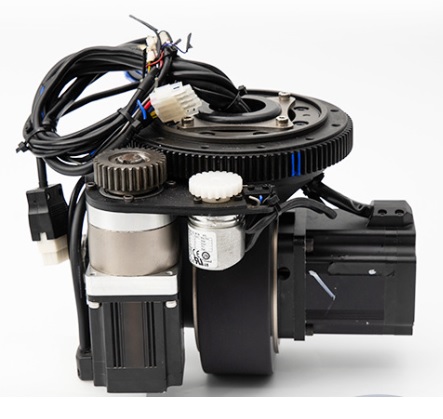

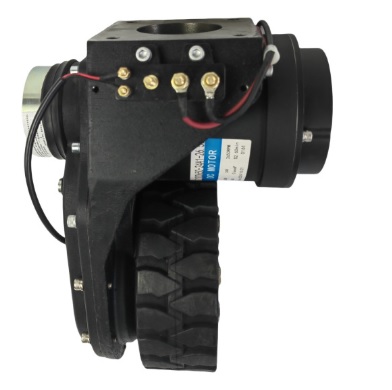

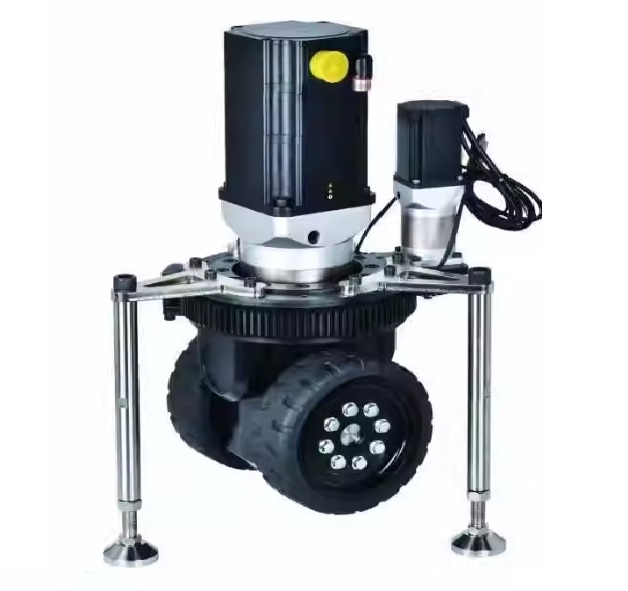

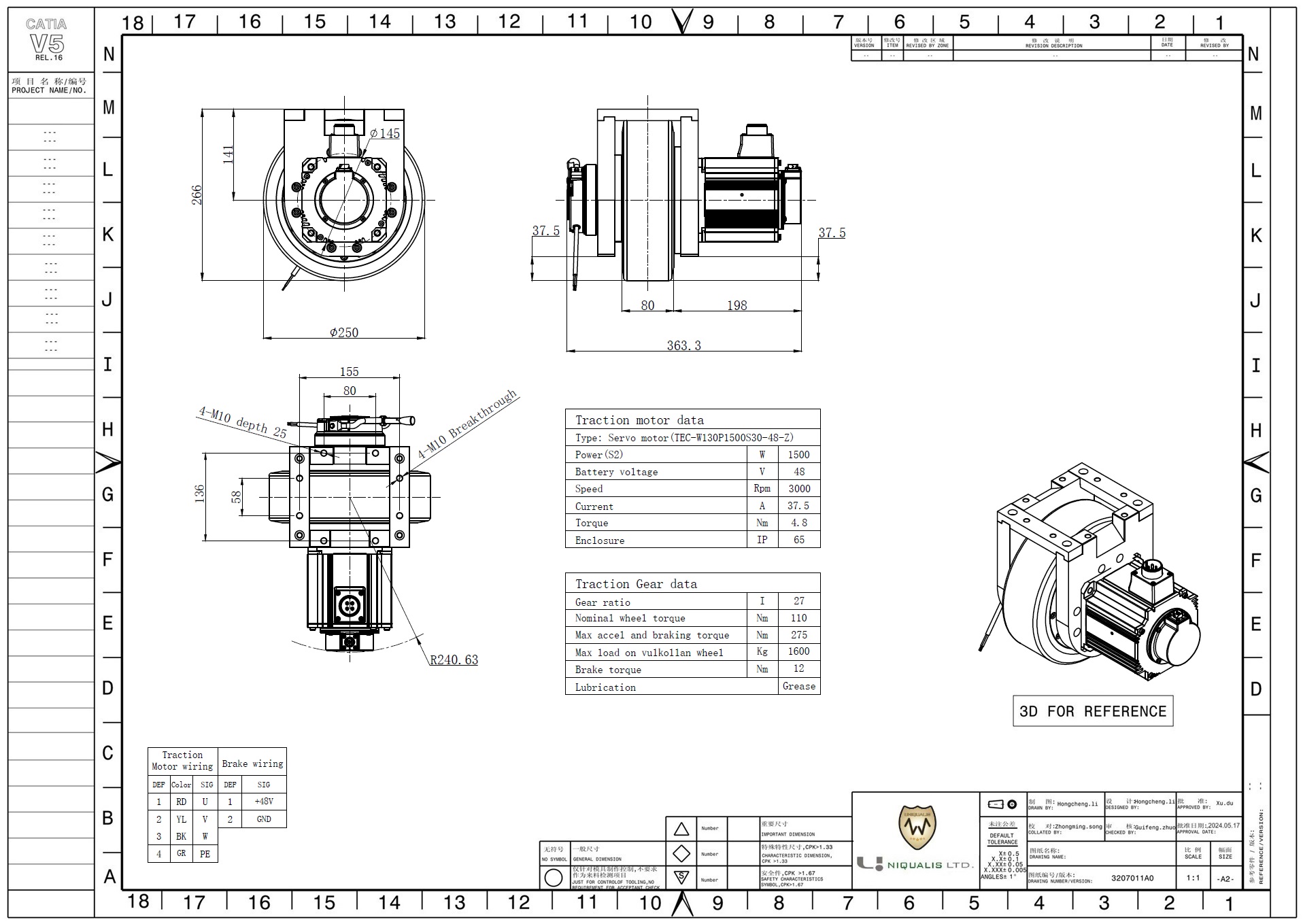

Vertical Drive Wheel with Steering
1.Vertical drive wheel series (named by wheel diameter in mm): 150, 230, 250, 310, 343, 406, 457 and 470 series covering various applications.
2.Load capacity: 500kg to 6500kg across different series.

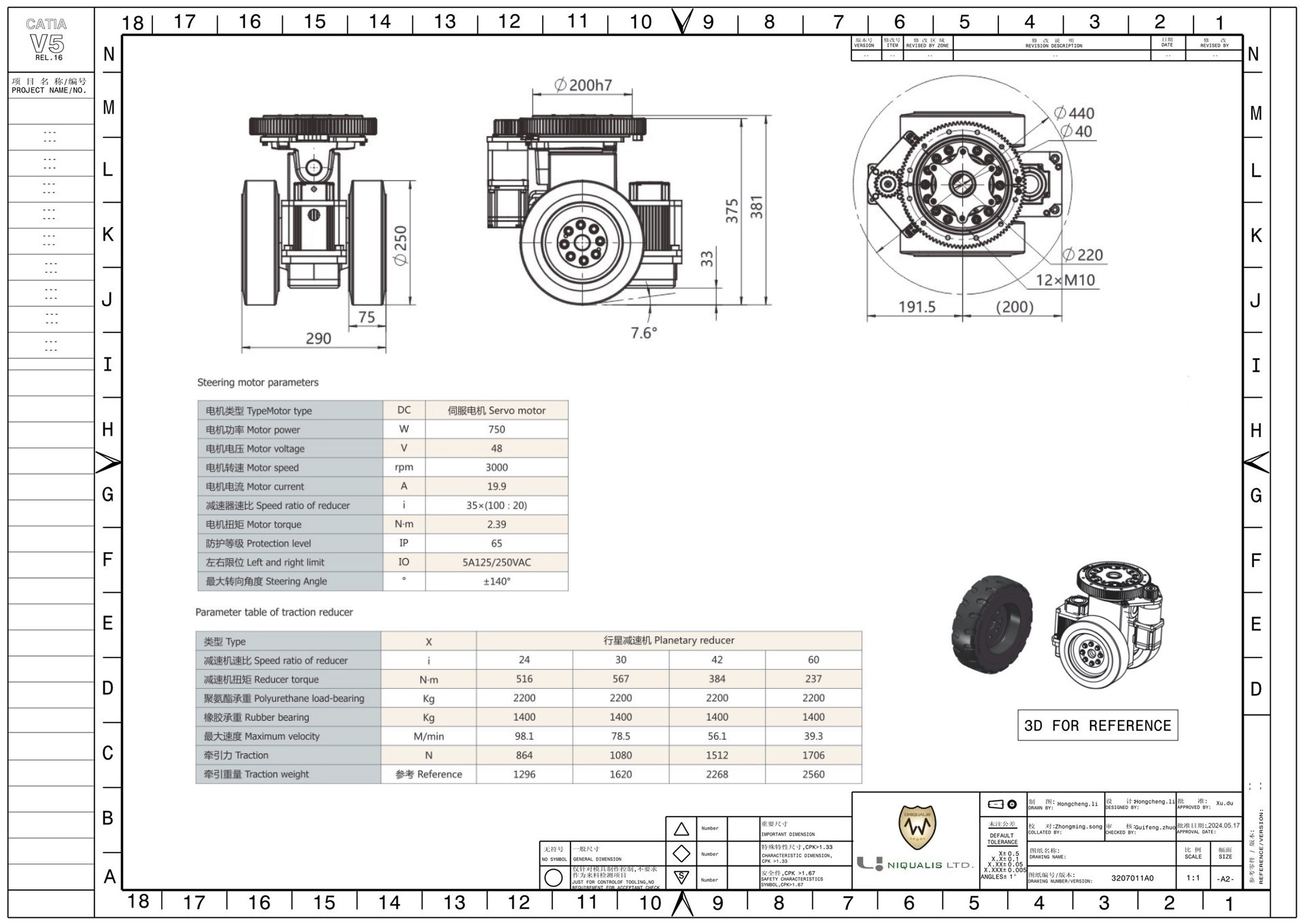

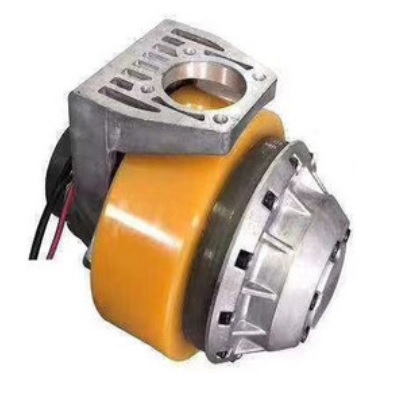

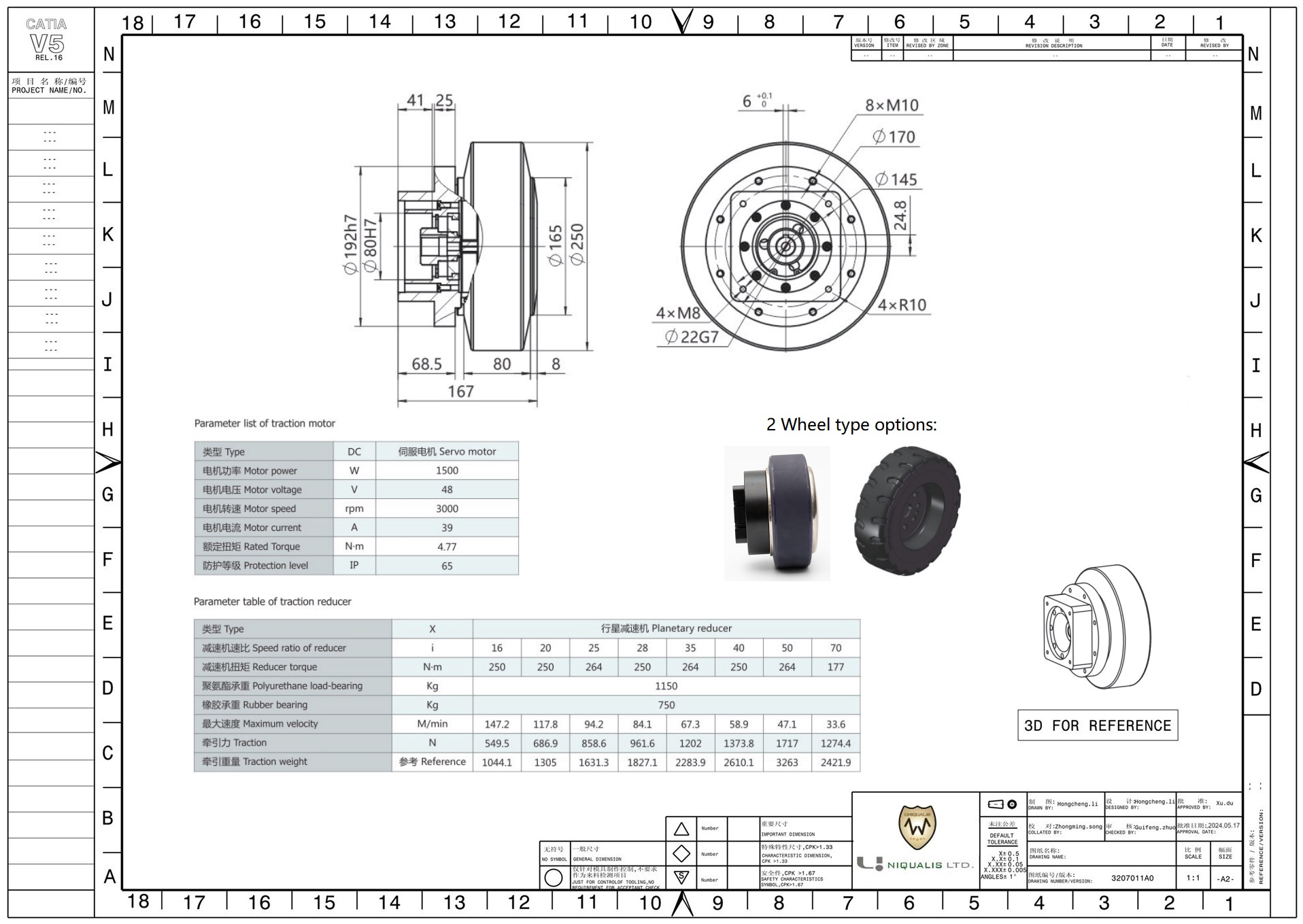

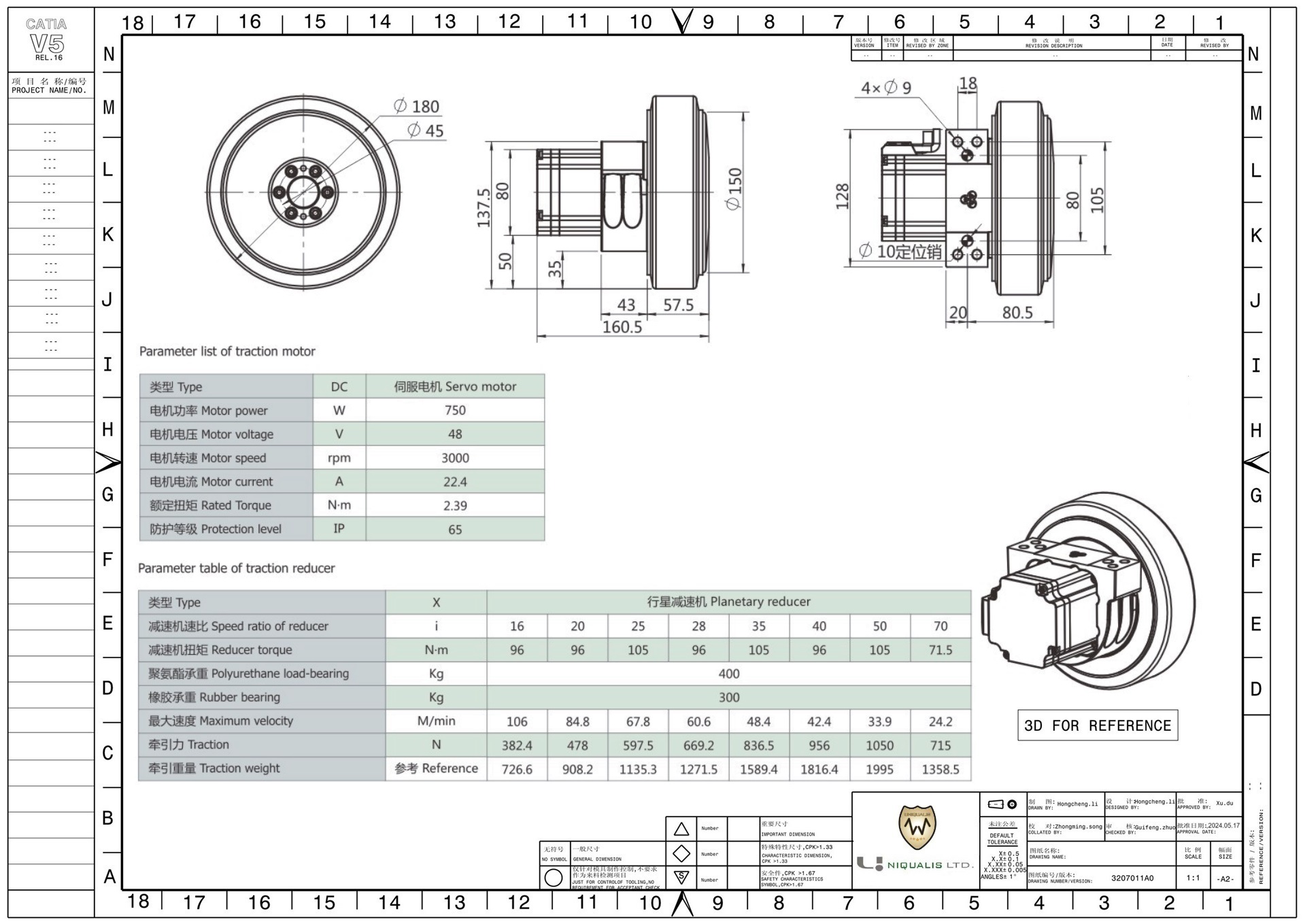

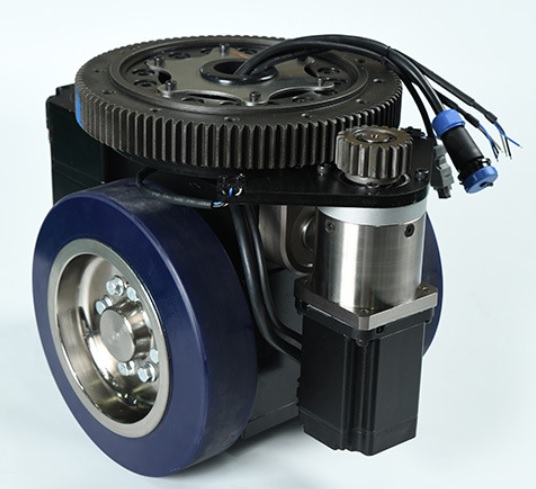

Horizontal Drive Wheel
1.Horizontal drive wheel series (named by wheel diameter in mm): covering the full range of applications with diameters of 150, 167, 198, 220 and 250.
2.Horizontal drive wheel load capacity: 500kg to 1600kg across various series.

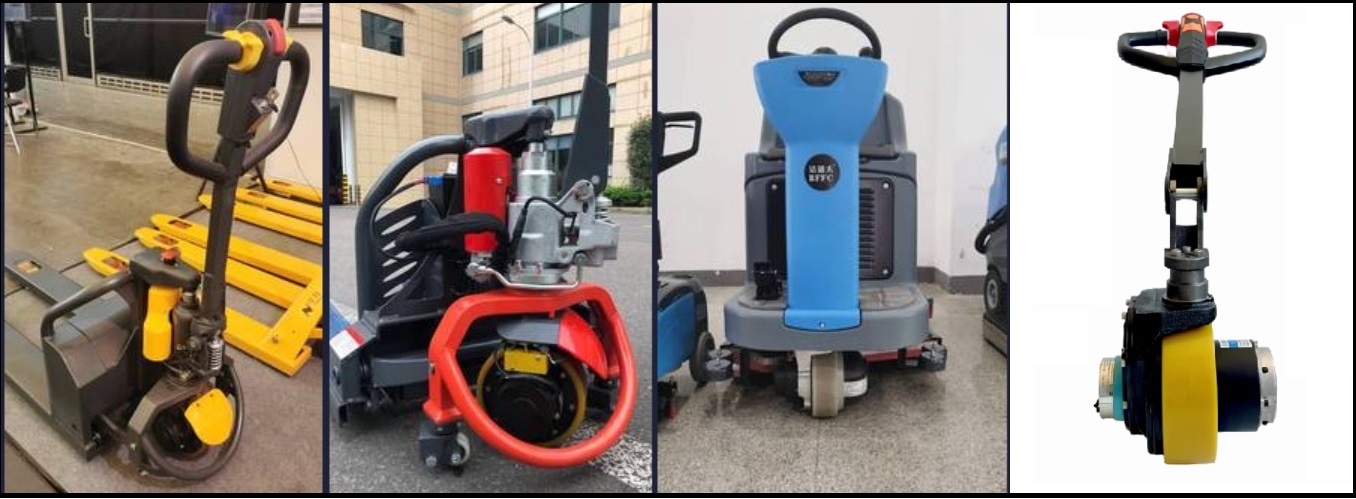

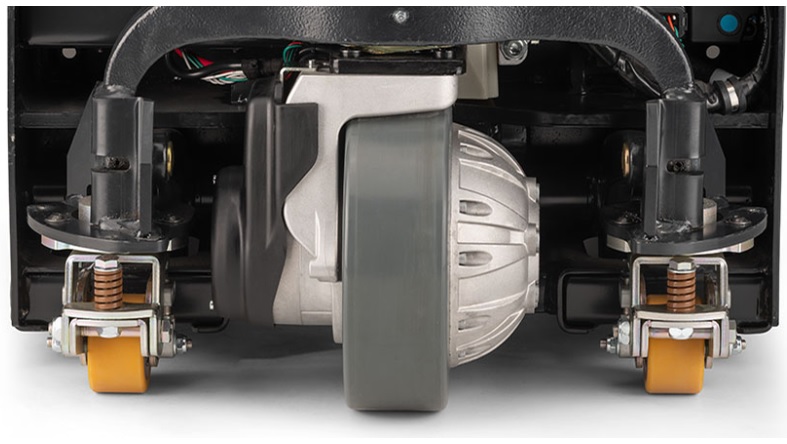

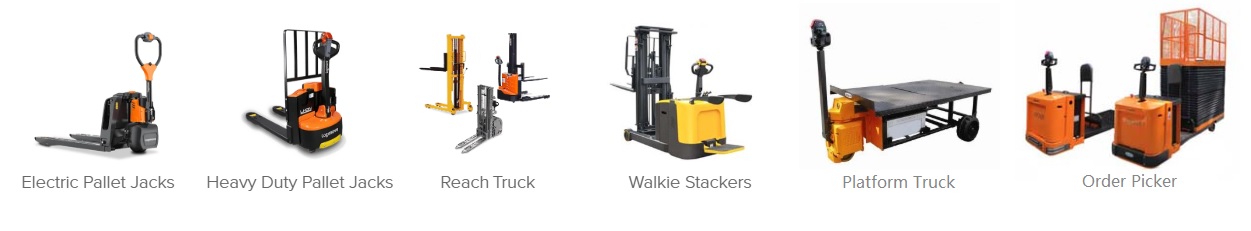

Electric Driving Wheel Application
Optional Setup
1.Input voltage range: 12V-96V, available in both vertical drive wheel with steering and without steering.
2.Optional wheel materials: polyurethane or rubber.
3.Optional motors: DC brushed, AC asynchronous, or permanent magnet servo motors, with a power range of 400W to 16KW.
4.Optional components: shock absorption springs, limit switches, preset switches, incremental/absolute encoders, potentiometers, and other parts.
1.Input voltage range: 12V-96V, available in both vertical drive wheel with steering and without steering.
2.Optional wheel materials: polyurethane or rubber.
3.Optional motors: DC brushed, AC asynchronous, or permanent magnet servo motors, with a power range of 400W to 16KW.
4.Optional components: shock absorption springs, limit switches, preset switches, incremental/absolute encoders, potentiometers, and other parts.
Various wheel motors for Electric Scooter and Motorcycle
)
)
6" 160MM 250W 12V 24V 36V ELECTRIC WHEEL MOTOR FOR MINI SCOOTER OR GOLF TROLLEY
Available: In Stock Now !
Description :6 "wheel
With this 6" 160mm electric wheel brushless motor you can convert easily your golf trolley, baby troller or any kind of pusher puller, industrial cart into electric trolley.
1. Leisure and service (golf cart, refrigerated cart, stroller, prototyping)
2. Industrial (rolling base, industrial serving trolleys pusher puller)
3. Logistics (picking trucks)
Power : 350W

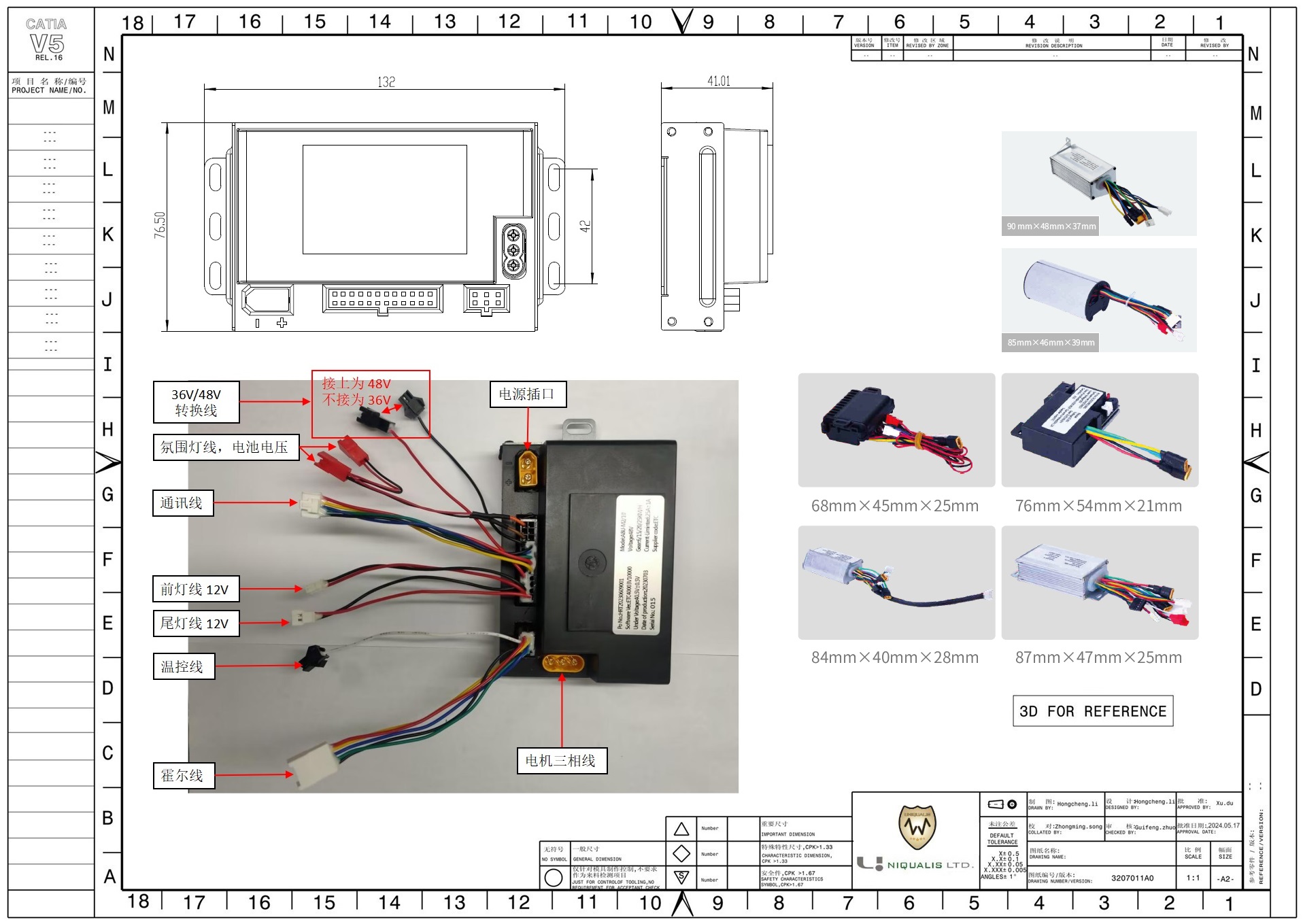

You will need 15A controller and 12V 24V or 36V battery.
Dropout 65mm for Direct drive motor - so you can move forward and backward.
Dropout 100mm for geared motor - so you can get higher torque at low speed.
Description :6 "wheel
With this 6" 160mm electric wheel brushless motor you can convert easily your golf trolley, baby troller or any kind of pusher puller, industrial cart into electric trolley.
1. Leisure and service (golf cart, refrigerated cart, stroller, prototyping)
2. Industrial (rolling base, industrial serving trolleys pusher puller)
3. Logistics (picking trucks)
Power : 350W
You will need 15A controller and 12V 24V or 36V battery.
Dropout 65mm for Direct drive motor - so you can move forward and backward.
Dropout 100mm for geared motor - so you can get higher torque at low speed.
)

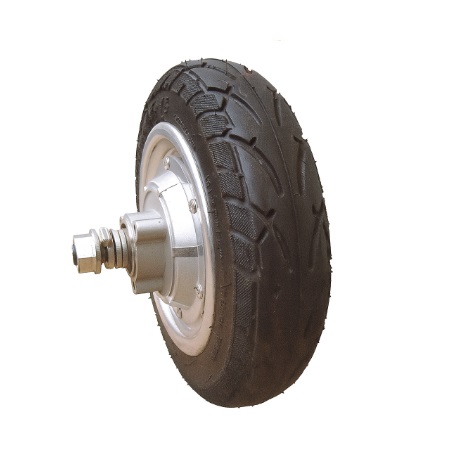

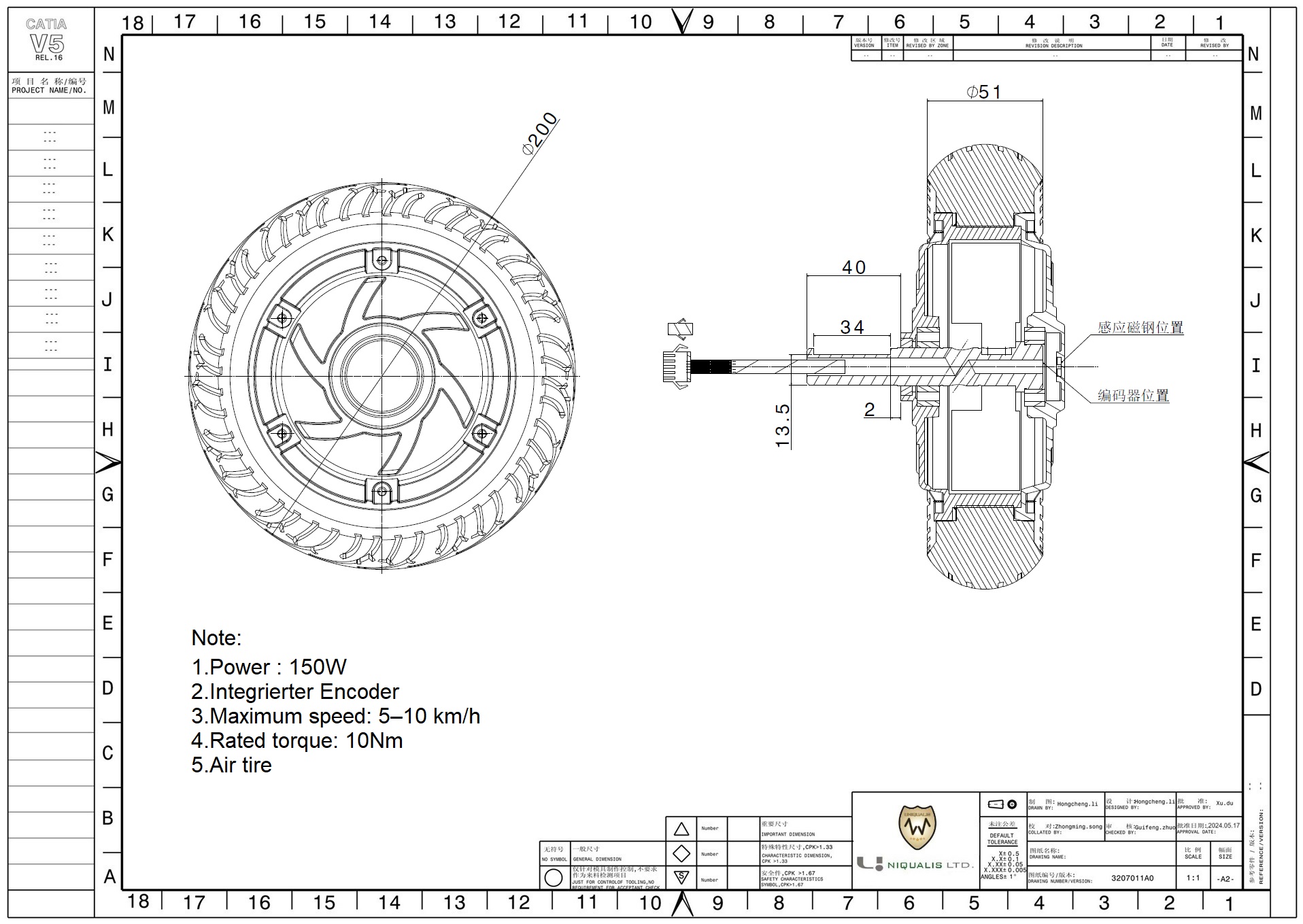

8 " ELECTRIC BRUSHLESS WHEEL MOTOR FOR Scooter and eBike Hub motors
Available: In Stock Now !
Description :8 "wheel
Hub motors for scooter and eBike use.
8inch High Power Split Wheel Motor
Operating Voltage 48-96V
Rated Power 200-3000W
Top Speed 40-100km/h
Hub Fixing Hole Pitch 4*100mm
Adaptive Wheel Hub 8inch;10inch; 12inch
Description :8 "wheel
Hub motors for scooter and eBike use.
8inch High Power Split Wheel Motor
Operating Voltage 48-96V
Rated Power 200-3000W
Top Speed 40-100km/h
Hub Fixing Hole Pitch 4*100mm
Adaptive Wheel Hub 8inch;10inch; 12inch
)
8 " ELECTRIC BRUSHLESS WHEEL MOTOR FOR Scooter and eBike Hub motors
Available: In Stock Now !
Description :8 "wheel
Hub motors for scooter and eBike use.
8inch High Power Split Wheel Motor
Operating Voltage 48-96V
Rated Power 200-3000W
Top Speed 40-100km/h
Hub Fixing Hole Pitch 4*100mm
Adaptive Wheel Hub 8inch;10inch; 12inch
Description :8 "wheel
Hub motors for scooter and eBike use.
8inch High Power Split Wheel Motor
Operating Voltage 48-96V
Rated Power 200-3000W
Top Speed 40-100km/h
Hub Fixing Hole Pitch 4*100mm
Adaptive Wheel Hub 8inch;10inch; 12inch
)
)
)

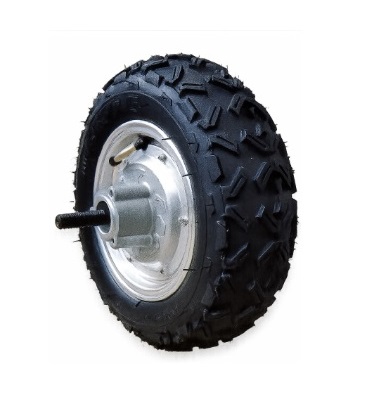

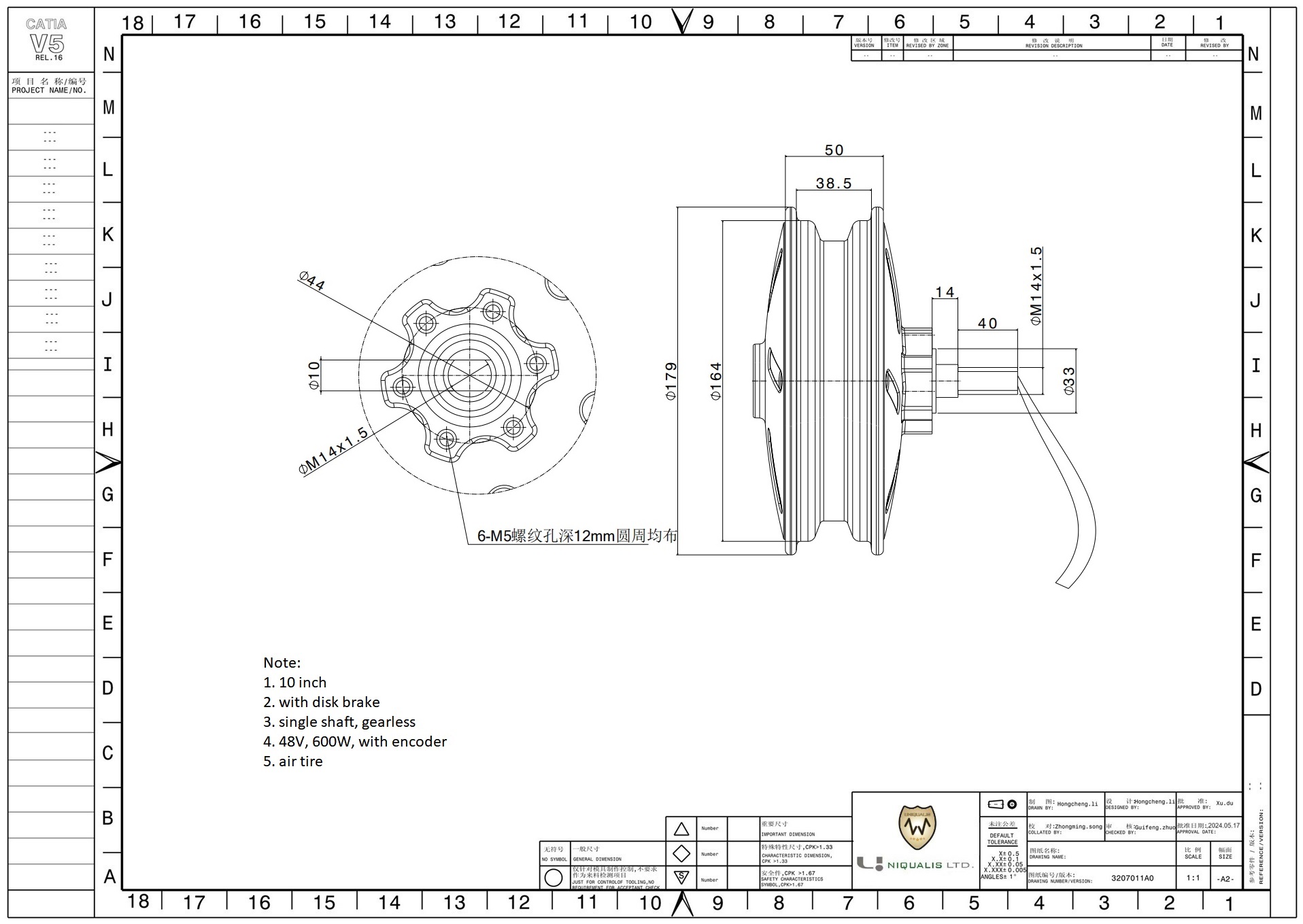

10 " 300W-1500W ELECTRIC BRUSHLESS WHEEL MOTOR FOR MEDICAL INDUSTRY
Available: In Stock Now !
Description :10 "wheel
Allows to move up to 200kg under 48V DC, max torque 100Nm
1) 10" 300W 110mm brushless electric wheel motor suitable for electric conversion of wheelchairs, hospital beds or any rolling machine used in the medical or industry environment to reduce hardness :
Leisure (Golf cart, stroller, terrestrial drone)
Medical (wheelchair, medical bed, stretcher)
Comes with inflatable tire
6 holes support for disc brake (delivered without the brake)
Cable : 20cm
2) 10" 1500W electric wheel motor for wheelbarrow and agriculture machine, ideal for providing assistance for difficult and arduous work.
Standard size of a wheelbarrow tire 4.00 - 10
Disc or drum braking.
Weight: 12 kg | Diameter: 273 mm
Center distance: 200 mm | Axle: 16x12
Description :10 "wheel
Allows to move up to 200kg under 48V DC, max torque 100Nm
1) 10" 300W 110mm brushless electric wheel motor suitable for electric conversion of wheelchairs, hospital beds or any rolling machine used in the medical or industry environment to reduce hardness :
Leisure (Golf cart, stroller, terrestrial drone)
Medical (wheelchair, medical bed, stretcher)
Comes with inflatable tire
6 holes support for disc brake (delivered without the brake)
Cable : 20cm
2) 10" 1500W electric wheel motor for wheelbarrow and agriculture machine, ideal for providing assistance for difficult and arduous work.
Standard size of a wheelbarrow tire 4.00 - 10
Disc or drum braking.
Weight: 12 kg | Diameter: 273 mm
Center distance: 200 mm | Axle: 16x12
)
12-13 " 300W-1500W ELECTRIC BRUSHLESS WHEEL MOTOR FOR MEDICAL INDUSTRY
Available: In Stock Now !
Description :12-13 "wheel
Allows to move up to 200kg under 48V DC, max torque 100Nm
1) 12-13" 300W 110mm brushless electric wheel motor suitable for electric conversion of wheelchairs, hospital beds or any rolling machine used in the medical or industry environment to reduce hardness :
Leisure (Golf cart, stroller, terrestrial drone)
Medical (wheelchair, medical bed, stretcher)
Comes with inflatable tire
6 holes support for disc brake (delivered without the brake)
Cable : 20cm
2) 12-13" 1500W electric wheel motor for wheelbarrow and agriculture machine, ideal for providing assistance for difficult and arduous work.
Standard size of a wheelbarrow tire 4.00 - 10
Disc or drum braking.
Weight: 12 kg | Diameter: 273 mm
Center distance: 200 mm | Axle: 16x12
Description :12-13 "wheel
Allows to move up to 200kg under 48V DC, max torque 100Nm
1) 12-13" 300W 110mm brushless electric wheel motor suitable for electric conversion of wheelchairs, hospital beds or any rolling machine used in the medical or industry environment to reduce hardness :
Leisure (Golf cart, stroller, terrestrial drone)
Medical (wheelchair, medical bed, stretcher)
Comes with inflatable tire
6 holes support for disc brake (delivered without the brake)
Cable : 20cm
2) 12-13" 1500W electric wheel motor for wheelbarrow and agriculture machine, ideal for providing assistance for difficult and arduous work.
Standard size of a wheelbarrow tire 4.00 - 10
Disc or drum braking.
Weight: 12 kg | Diameter: 273 mm
Center distance: 200 mm | Axle: 16x12
)
)
14" 1000W ELECTRIC BRUSHLESS MOTOR WHEEL
Available: In Stock Now !
Description :
Electric brushless motor wheel 14" 1000W.
Vmax 10Km/h under 48V but can be customized for B2B projects
Weight = 6,5 kg
Brushless Motor
Eff. 85%
Voltage 24V, 36V et 48V
Voltage Max 48V
Hall sensors Out
Waterproof grade IP54
Description :
Electric brushless motor wheel 14" 1000W.
Vmax 10Km/h under 48V but can be customized for B2B projects
Weight = 6,5 kg
Brushless Motor
Eff. 85%
Voltage 24V, 36V et 48V
Voltage Max 48V
Hall sensors Out
Waterproof grade IP54
)

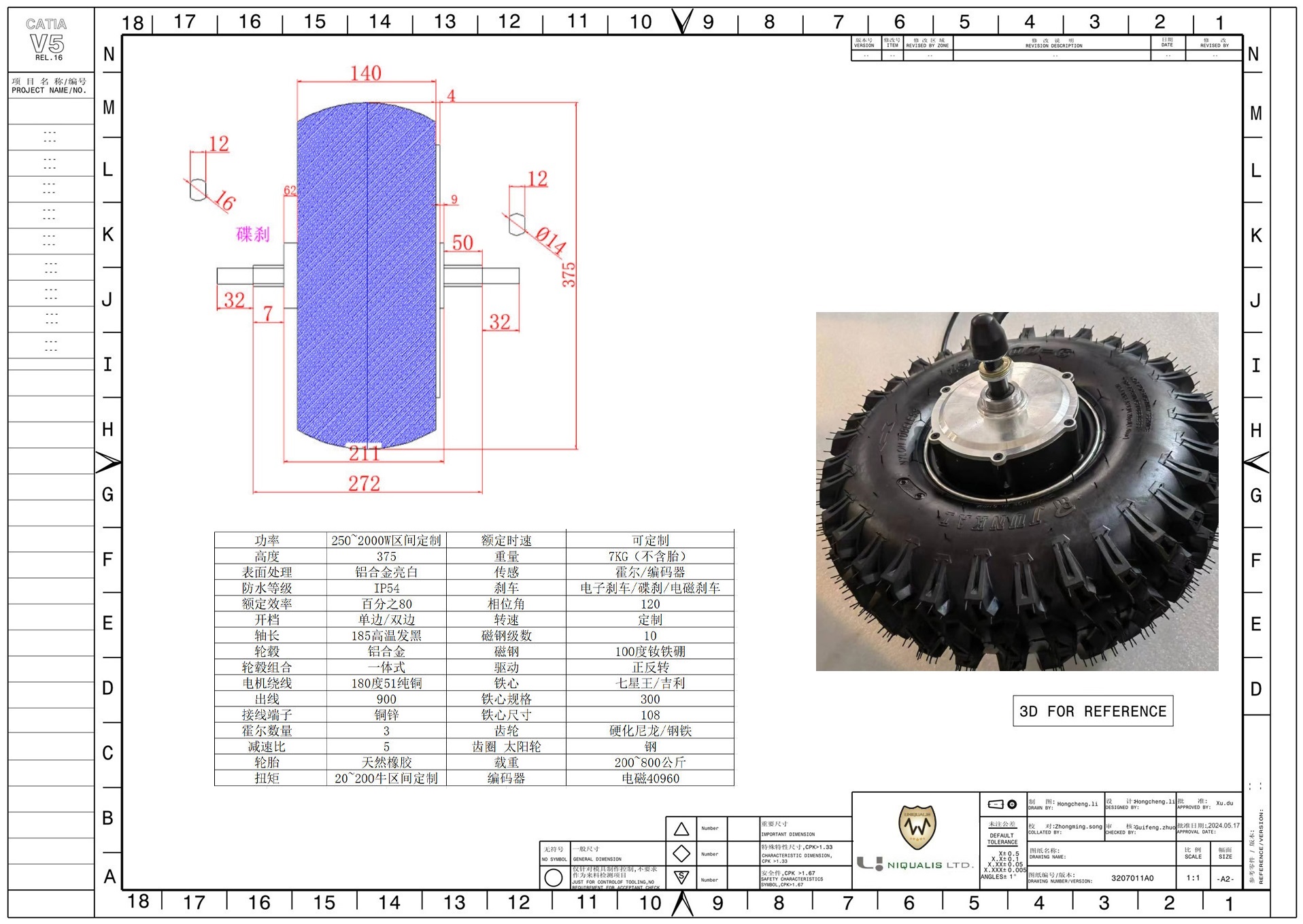

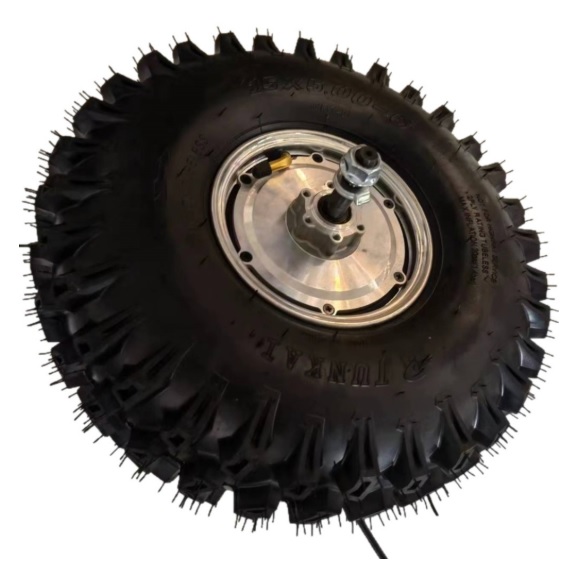

15inch Wheel Motor for 4 wheel carts, ATV/UTV
Available: In Stock Now !
Description : Single Shaft Split Motor
Operating Voltage 48-96V
Rated Power 1000-5000W
Top Speed 20-80km/h
Peak Torque 70-250N.m
Hub Fixing Hole Pitch 4*100mm
Brake System Disc Brake
Sensor Type Hall Sensor; Magnetic Coding Sensor; Spin Sensor
Description : Single Shaft Split Motor
Operating Voltage 48-96V
Rated Power 1000-5000W
Top Speed 20-80km/h
Peak Torque 70-250N.m
Hub Fixing Hole Pitch 4*100mm
Brake System Disc Brake
Sensor Type Hall Sensor; Magnetic Coding Sensor; Spin Sensor
)

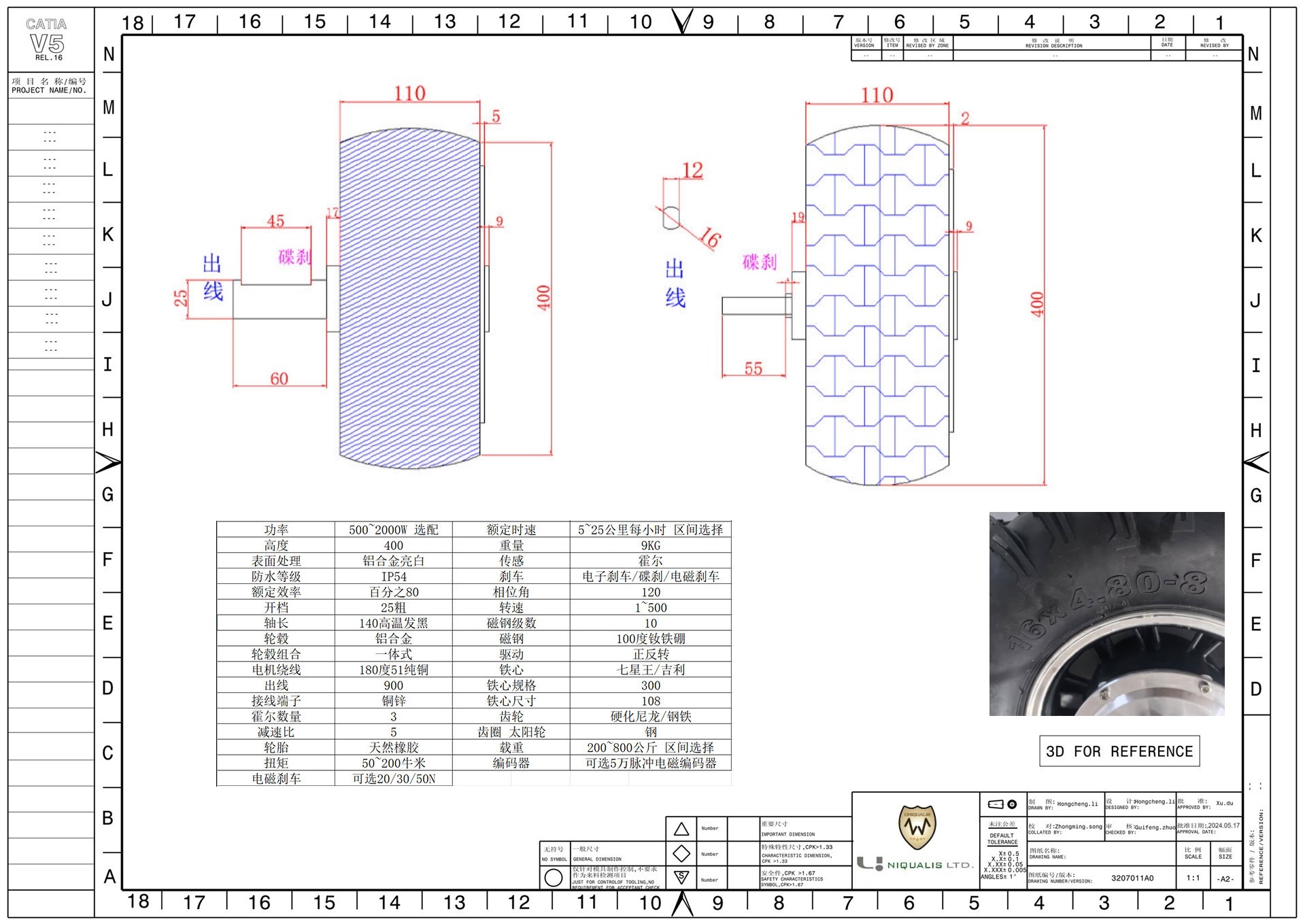

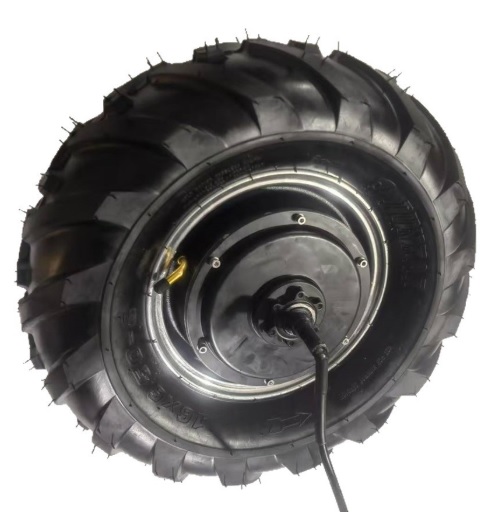

16inch Wheel Motor for 4 wheel carts, ATV/UTV
Available: In Stock Now !
Description : Single Shaft Split Motor
Operating Voltage 48-96V
Rated Power 1000-5000W
Top Speed 20-80km/h
Peak Torque 70-250N.m
Hub Fixing Hole Pitch 4*100mm
Brake System Disc Brake
Sensor Type Hall Sensor; Magnetic Coding Sensor; Spin Sensor
Description : Single Shaft Split Motor
Operating Voltage 48-96V
Rated Power 1000-5000W
Top Speed 20-80km/h
Peak Torque 70-250N.m
Hub Fixing Hole Pitch 4*100mm
Brake System Disc Brake
Sensor Type Hall Sensor; Magnetic Coding Sensor; Spin Sensor
)

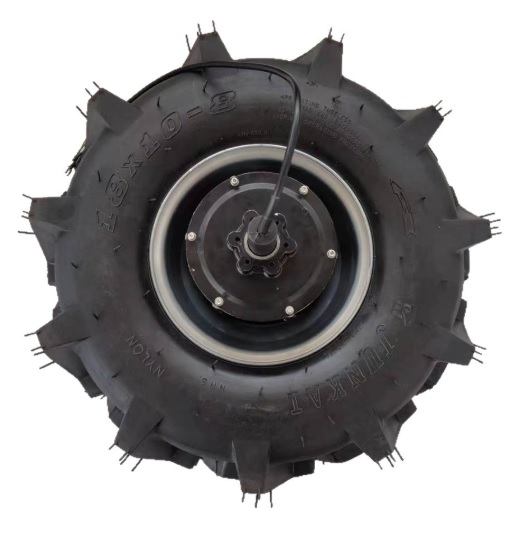

18inch Wheel Motor for 4 wheel carts, ATV/UTV
Available: In Stock Now !
Description : Single Shaft Split Motor
Operating Voltage 48-96V
Rated Power 1000-5000W
Top Speed 20-80km/h
Peak Torque 70-250N.m
Hub Fixing Hole Pitch 4*100mm
Brake System Disc Brake
Sensor Type Hall Sensor; Magnetic Coding Sensor; Spin Sensor
Description : Single Shaft Split Motor
Operating Voltage 48-96V
Rated Power 1000-5000W
Top Speed 20-80km/h
Peak Torque 70-250N.m
Hub Fixing Hole Pitch 4*100mm
Brake System Disc Brake
Sensor Type Hall Sensor; Magnetic Coding Sensor; Spin Sensor
)
)
5000W Rear Wheel Motor For Agricultural And Industry
Available: In Stock Now !
Description :
This 5000W motor gets 55mmm magnets and can accepts up to 5000W power.
It is a BLDC Brushless motor that can be powered from 24V to 96V
accepts a max current of 90A and 60A continuously.
Its stator has a lamination in 0.35mm which gives it a yield of 91%.
Center distance: 150mm
Length of axis = 229,5mm
Weight : 9,8 kg | dropout : 150mm
Pmax = 5000W / Pnom = 4000W
Max torque = 170N.m
Delivered with a 200mm cable length.
Description :
This 5000W motor gets 55mmm magnets and can accepts up to 5000W power.
It is a BLDC Brushless motor that can be powered from 24V to 96V
accepts a max current of 90A and 60A continuously.
Its stator has a lamination in 0.35mm which gives it a yield of 91%.
Center distance: 150mm
Length of axis = 229,5mm
Weight : 9,8 kg | dropout : 150mm
Pmax = 5000W / Pnom = 4000W
Max torque = 170N.m
Delivered with a 200mm cable length.
)
)

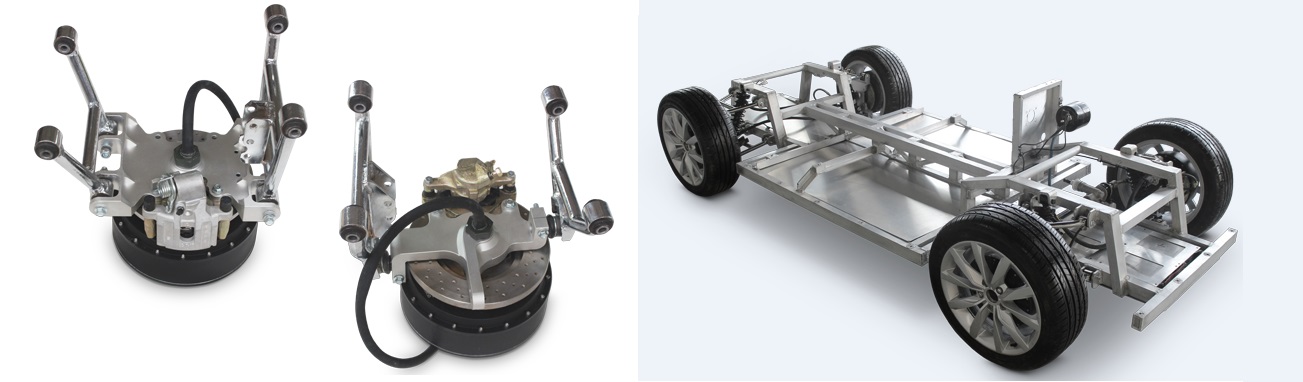

10kW-15kW Wheel Motor for High Power EV
Available: In Stock Now !
Description : Single Shaft Split Motor
Operating Voltage 48-96V
Rated Power 1000-15000W
Top Speed 20-150km/h
Peak Torque 70-450N.m
Hub Fixing Hole Pitch 5*114.3; 4*114.3mm
Brake System Disc Brake
Sensor Type Hall Sensor; Magnetic Coding Sensor; Spin Sensor
Description : Single Shaft Split Motor
Operating Voltage 48-96V
Rated Power 1000-15000W
Top Speed 20-150km/h
Peak Torque 70-450N.m
Hub Fixing Hole Pitch 5*114.3; 4*114.3mm
Brake System Disc Brake
Sensor Type Hall Sensor; Magnetic Coding Sensor; Spin Sensor
)
)
3kW-5kW Wheel Motor for 4 wheel carts, ATV/UTV
Available: In Stock Now !
Description : Single Shaft Split Motor
Operating Voltage 48-96V
Rated Power 1000-5000W
Top Speed 20-80km/h
Peak Torque 70-250N.m
Hub Fixing Hole Pitch 4*100mm
Brake System Disc Brake
Sensor Type Hall Sensor; Magnetic Coding Sensor; Spin Sensor
Description : Single Shaft Split Motor
Operating Voltage 48-96V
Rated Power 1000-5000W
Top Speed 20-80km/h
Peak Torque 70-250N.m
Hub Fixing Hole Pitch 4*100mm
Brake System Disc Brake
Sensor Type Hall Sensor; Magnetic Coding Sensor; Spin Sensor
Single Shaft Wheel Motors Application
Low Noise Motor Transmission Solution- 4 motors in the wheels delivering 4 * 5-15 kW. It gives you extra space for your bags and plenty of power to go wherever you need.
)
1.2kW Skateboard PU motor wheel 5065
Available: In Stock Now !
Description :
PU wheel motors for skateboard use.
Brushless motor: 5065 1200W
Gear: 5M36
Belts: 5M335/340
Motor gear: M8 13T
Specification
Low speed mode PU wheel: 15 km/h
Medium Speed mode PU wheel: 25 km/h
High speed mode PU wheel: 40 km/h
Climbing ability : 15 degree
Max loading:120kg
Description :
PU wheel motors for skateboard use.
Brushless motor: 5065 1200W
Gear: 5M36
Belts: 5M335/340
Motor gear: M8 13T
Specification
Low speed mode PU wheel: 15 km/h
Medium Speed mode PU wheel: 25 km/h
High speed mode PU wheel: 40 km/h
Climbing ability : 15 degree
Max loading:120kg
)
1.5kW Skateboard motor wheel 6374
Available: In Stock Now !
Description :Skateboard motor wheel.
4.5inch wheel
Motor: 6374 1500W
Gear: 5M36
Belts: 5M335/340/345
Motor gear: 10mm 14T
Specification
Low speed mode: 15 km/h
Medium Speed mode: 25 km/h
High speed mode: 40 km/h
Climbing ability : 15 degree
Max loading: 120kg
Description :Skateboard motor wheel.
4.5inch wheel
Motor: 6374 1500W
Gear: 5M36
Belts: 5M335/340/345
Motor gear: 10mm 14T
Specification
Low speed mode: 15 km/h
Medium Speed mode: 25 km/h
High speed mode: 40 km/h
Climbing ability : 15 degree
Max loading: 120kg
Skateboard Motor
AI Robotic Wheel Motors
Uniqualis Robots Wheel is designed for various applications, from education to professional use. This collection features robust and versatile robot kits including FTC starter sets, omnidirectional Mecanum wheel robots, and advanced AI platforms.
)
)
)
130 gearmotor for wheel drives
Available: In Stock Now !
Description :Wheel Drive gearbox unit for robots use .
Supply range: 3 ~ 6 V.
Reduction ratio: 1:48.
Load 3 V (rpm) 125.
Load 3 V 66 mm wheel speed (m/min) 26.
Load 5 V (rpm) 208.
Load 5 V 66 mm wheel speed (m/min) 44.
Torque: 0.8 kg/cm.
Wheel diameter: 65 mm x 27 mm.
Description :Wheel Drive gearbox unit for robots use .
Supply range: 3 ~ 6 V.
Reduction ratio: 1:48.
Load 3 V (rpm) 125.
Load 3 V 66 mm wheel speed (m/min) 26.
Load 5 V (rpm) 208.
Load 5 V 66 mm wheel speed (m/min) 44.
Torque: 0.8 kg/cm.
Wheel diameter: 65 mm x 27 mm.
WHY CHOOSE UNIQUALIS MOTOR
SINCE 2001
23+ years experience in Gear Motors, BLDC motors and electric axle manufacturing.10+ years experience in international trade and started office in Frankfurt am Main,Germany in 2017.
Flexible Manufacturing
Automatization motors production equipment. Our flexible manufacturing line can accommodate large and small orders for any kind of industries for innovation in motion.
Engineering Excellence
Due to the extensive experience in drive technology, our customers can count on good practical advice in the field of assembly up to complex R&D issues, whether or not combined with business solutions.
OEM&ODM
Adapt precision gear process to ensure low noise and low vibration for 98% OEM&ODM.
Quality Control System and Best Service
From idea, design, testing, technology support, manufacturing to sales, Uniqualis offers products and service in domestic and overseas marketing under IATF 16949:2016 system.
After-Sales Service in Germany
Our after-sales service is jointly managed by our factory in China and our office located near Frankfurt am Main, Germany. For particularly complex issues, our research department engineers will directly assist you to ensure a swift resolution.
Motor Wheel
Uniqualis has a wide array of hub motors for sale, including electric bike motors for sale, electric scooter motor and electric motorcycle hub motor.
Strong Power Output to Cope with Complex Road Conditions
The application of a rear hub motor also greatly optimizes the riding experience of e-bikes. Since the rear hub motor is directly connected to the wheel, its power output is smoother, reducing the bumpy feeling during riding.
The noise level of the rear hub motor is relatively low, allowing the rider to enjoy the ride while maintaining a comfortable environment.
In addition, the lightweight design of the rear hub motor also reduces the weight of the entire bike, making riding easier and more comfortable.
Customer Service
Germany Phone:
+49-(0)160 5843578
China Phone:
+86 159 2187 7296
Email : uniqualis@gmail.com
WhatsApp:
+86 159 2187 7296
Skype : Uniqualis
Electric Drive Axle
Wheel Drives
UNIQUALIS MANUFACTORY LTD. Copyright © All Right Reserved
