EDF motors




2430 - 50mm Fan Motors
4600 Kv (rpm/volt) 130-500 Watts
Dia. 24mm * Length 30mm

2627 - 50mm Fan Motors
4300 Kv (rpm/volt) 120-500 Watts
Length: 26.5 mm * Diameter: 26 mm

Available : In Stock Now !
Manufacturer : Uniqualis

Recommended for props :
Alpha, Wemotech Micro, XF Fan Units

    Uniqualis EDF motor is the new revolution for Electric Ducted Fan motor (EDF) applications, fan units 60mm and smaller.

It can be used in a gearbox to spin props within the specified amp range.

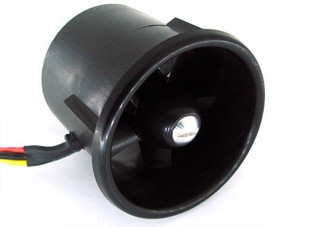

3638 - 70mm Fan Motors
4200 Kv (rpm/volt) 6 pole
Dia. 36mm * Length 38mm

2852 - 70mm Fan Motors
4400 Kv (rpm/volt) 4 pole Inrunner Motor
Dia. 28mm * Length 52mm

Available : In Stock Now !
Manufacturer : Uniqualis

Recommended for:
3-5 cells 80-125 amp controller
4 cells in the HET will give you 90 amps at 1250 watts
5 cells will get you over 2100 watts!


    Uniqualis 70mm EDF motor is for bigger fans and higher power setups.








3530 - 90mm Fan Motors
1400 - 1700KV (rpm/volt) 6 pole
Dia. 35mm * Length 30mm

3854- 90mm Fan Motors
1500 - 2600KV (rpm/volt) 4 pole Inrunner Motor
Dia. 38mm * Length 54mm

1500-1600 KV , we get 50,000 rpm on 10s.


Available : In Stock Now !
Manufacturer : Uniqualis





5045 - 120mm Fan Motors
700-720 KV (rpm/volt) 6 pole
Dia. 50mm * Length 45mm

6166 - 120mm Fan Motors
Dia. 61mm * Length 66 mm
500-650kv
8 Poles and 12 Stator Arms

Available : In Stock Now !
Manufacturer : Uniqualis

    When higher voltage ESC's are available, we will be able to push this system to 16-18 cells and 10,000 watts with over 25 lbs of thrust!

    While the motor is capable of being pushed to extremes it works great on 10S also; 88 amps, 3200 watts, 22,600 rpm's and over 12lbs of thrust



Available: In Stock Now !
Description :
Blade: 3B, 4B, 5B, 6B, 7B
With Shaft Screw Holder
EDF 50mm, 70mm, 90mm, 120mm
